When it comes to maintaining a healthy and stable reef aquarium, precision and reliability in your equipment are paramount. That’s why the Red Sea ReefATO system stands out as an exceptional choice for reef keepers who want to automate their top-off process, monitor their tank’s temperature with high accuracy, and safeguard against leaks — all with one smart device. In this comprehensive guide, we’ll dive into the features and benefits of the Red Sea ReefATO Plus, explaining why it is a game-changer for anyone serious about reef aquarium maintenance.
Table of Contents
- What is the Red Sea ReefATO Plus?
- Unpacking the Unique Solid-State Level Sensor
- Efficient and Quiet Pump Design
- Accurate Temperature Monitoring with Digital Thermometer
- External Leak Detection for Added Security
- Smart Features That Simplify Aquarium Maintenance
- Why Choose the Red Sea ReefATO Plus?
- Frequently Asked Questions (FAQs) About the Red Sea ReefATO Plus
- Conclusion
What is the Red Sea ReefATO Plus?
The Red Sea ReefATO Plus is a three-in-one system designed to simplify and secure your aquarium’s water top-off process while adding critical monitoring capabilities. It combines:
- An exceptionally reliable auto top-off (ATO) system
- A highly accurate digital temperature monitor
- An external leak detection system
All these features are seamlessly integrated with a smart controller that connects to the ReefBeat ecosystem — Red Sea’s innovative platform for aquarium monitoring and control. This integration allows aquarium keepers to receive real-time alerts and detailed logs, helping maintain optimal tank conditions effortlessly.
Unpacking the Unique Solid-State Level Sensor
At the heart of the Red Sea ReefATO Plus is a unique solid-state level sensor equipped with five titanium probes. These probes provide pinpoint accuracy in detecting water levels, ensuring your tank remains stable and healthy.

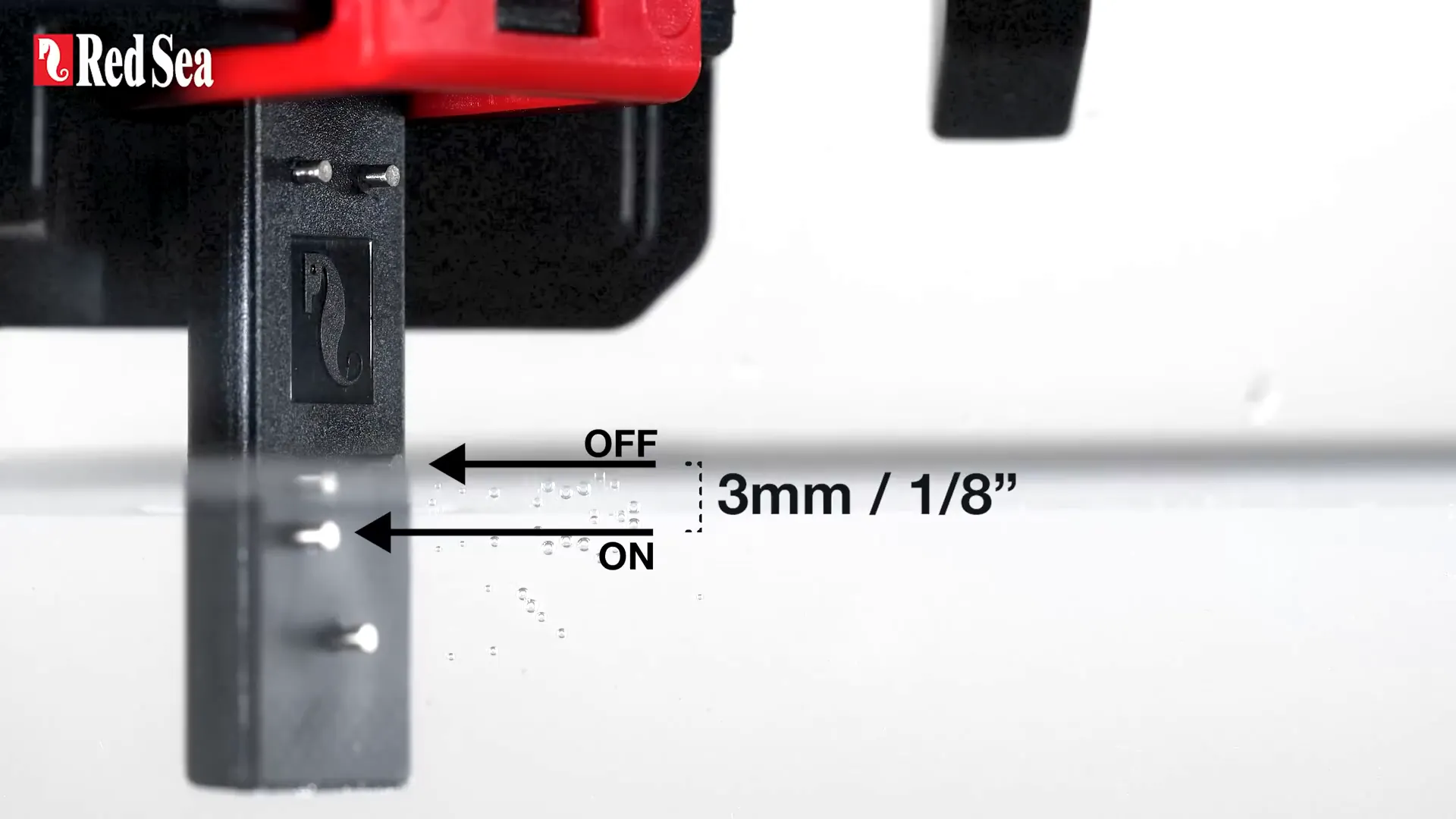

Two key probes control the pump operation: one turns the pump on and another turns it off. The distance between these two probes is only 3 millimeters (or roughly 1/8 of an inch). This tight margin helps maintain consistent water levels and salinity, preventing fluctuations that could stress your aquatic life.
Comprehensive Water Level Monitoring

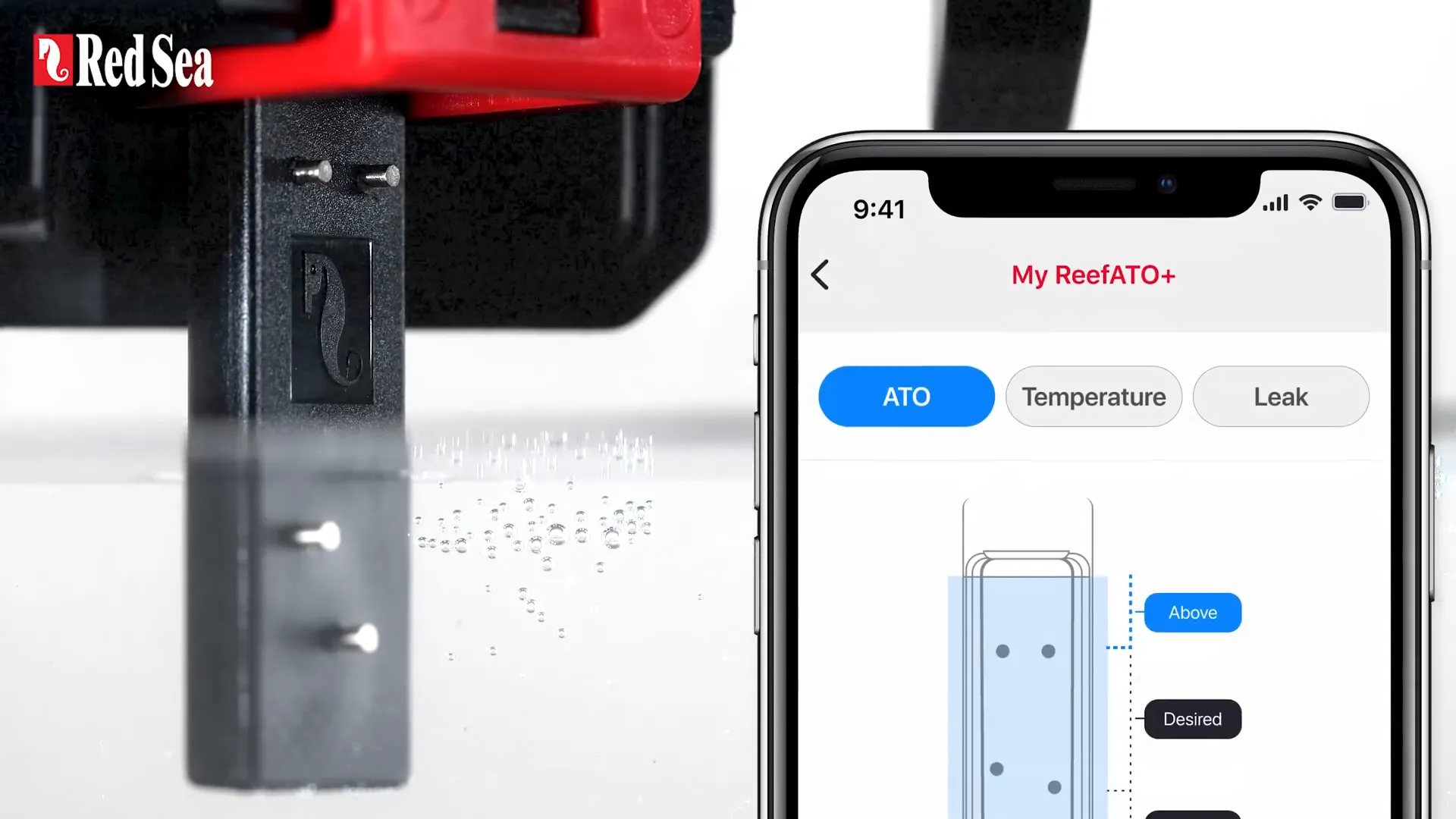

Beyond just turning the pump on and off, the full set of five probes allows you to monitor whether the water level is above, below, or exactly at the desired mark. This granular insight ensures that you are always aware of your tank’s water status.
Additionally, the top two probes serve as backup off sensors. In the unlikely event that water reaches these higher probes, the system will turn the pump off to prevent any overflow or flooding issues. Importantly, these backup sensors only react while the pump is running, so normal water level fluctuations caused by equipment like roller filters or turning off the return pump won’t trigger false alarms.
Fail-Safe Measures for Peace of Mind
The Red Sea ReefATO Plus is designed with multiple levels of protection to avoid mishaps:
- It calculates the average fill time for your tank and will automatically shut off the pump if it runs longer than expected, sending you a notification via ReefBeat.

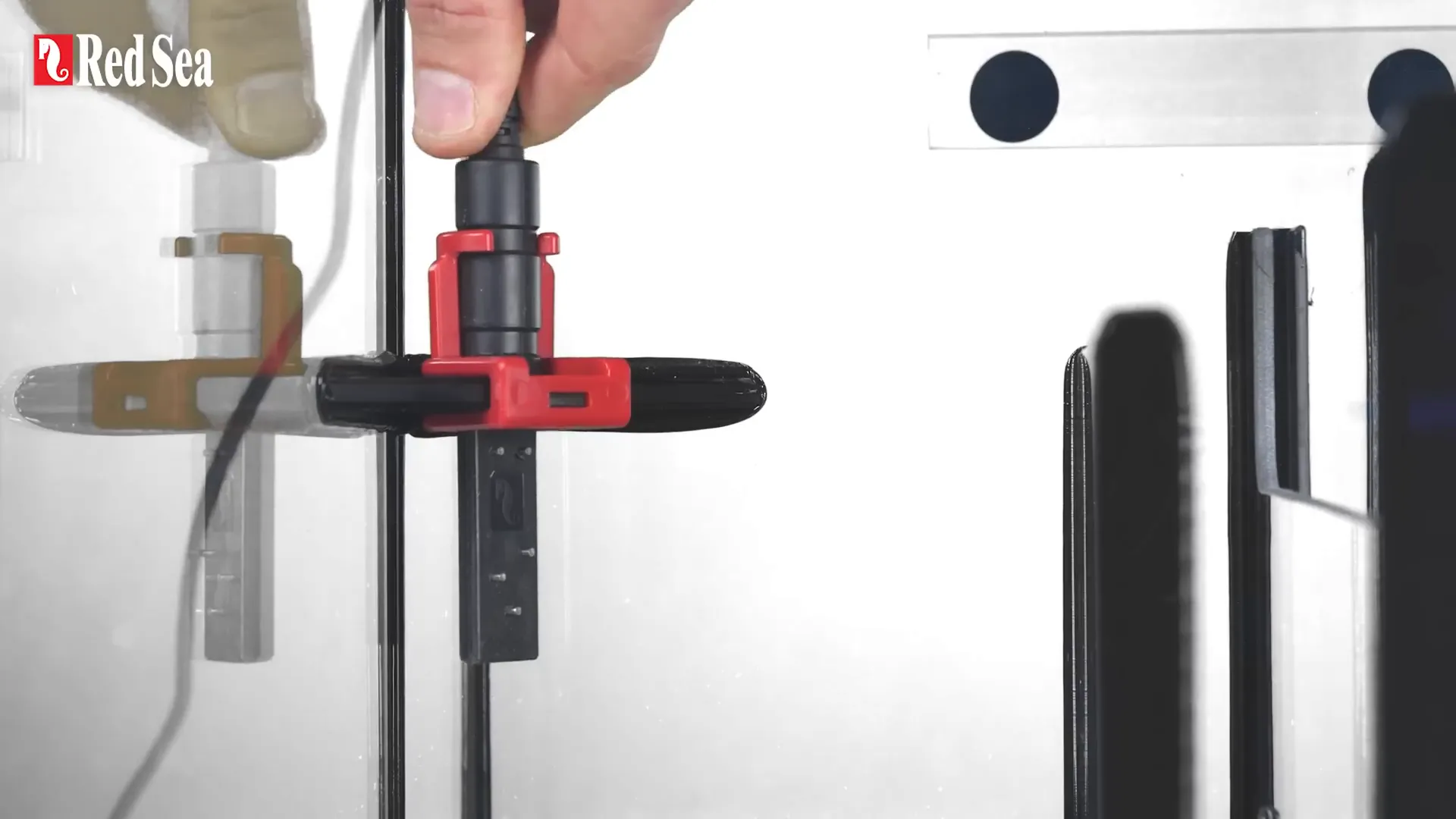

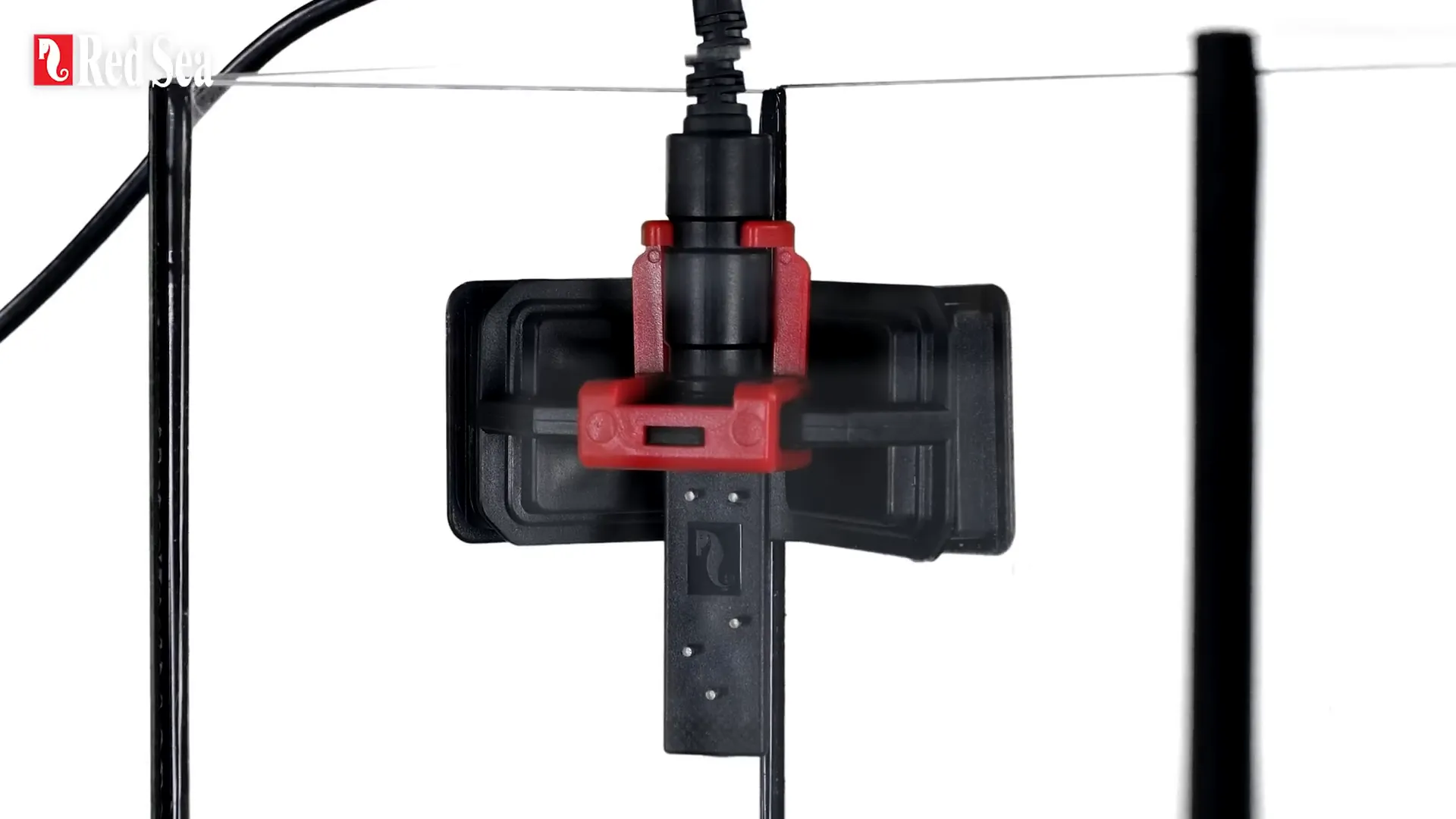

- A strong magnetic corner bracket holds the sensor firmly in place to prevent accidental movement.
- For Red Sea tank owners, the sensor holder can replace the float valve directly, making installation straightforward.
Efficient and Quiet Pump Design
The ReefATO Plus features a bespoke slimline pump designed for convenience and performance. This pump fits easily into any RO (reverse osmosis) water reservoir or jerry can with an opening diameter of 4.5 cm (1.8 inches), making it adaptable to many setups.
Despite its compact size, this pump is both powerful and quiet. It also allows easy access to the impeller for maintenance, which is a thoughtful touch for busy reef keepers.
Smart Pump Control
The pump connects to the controller via a 3-meter (10-foot) cable. This controller automatically adjusts the pump’s flow rate based on where it is placed, ensuring optimal performance without manual tweaking. This smart flow rate adjustment helps maintain smooth, splash-free water delivery and reduces noise.

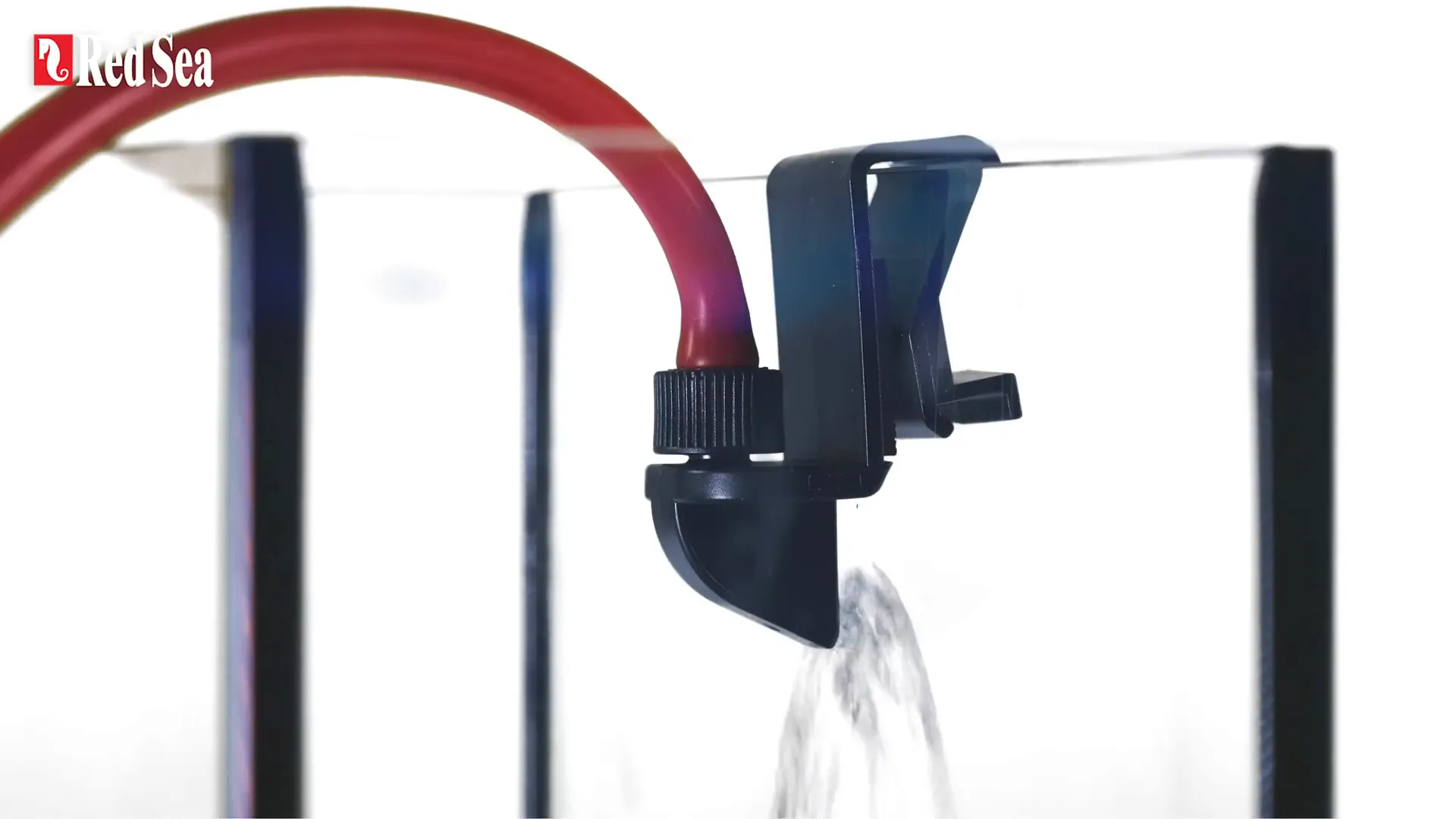

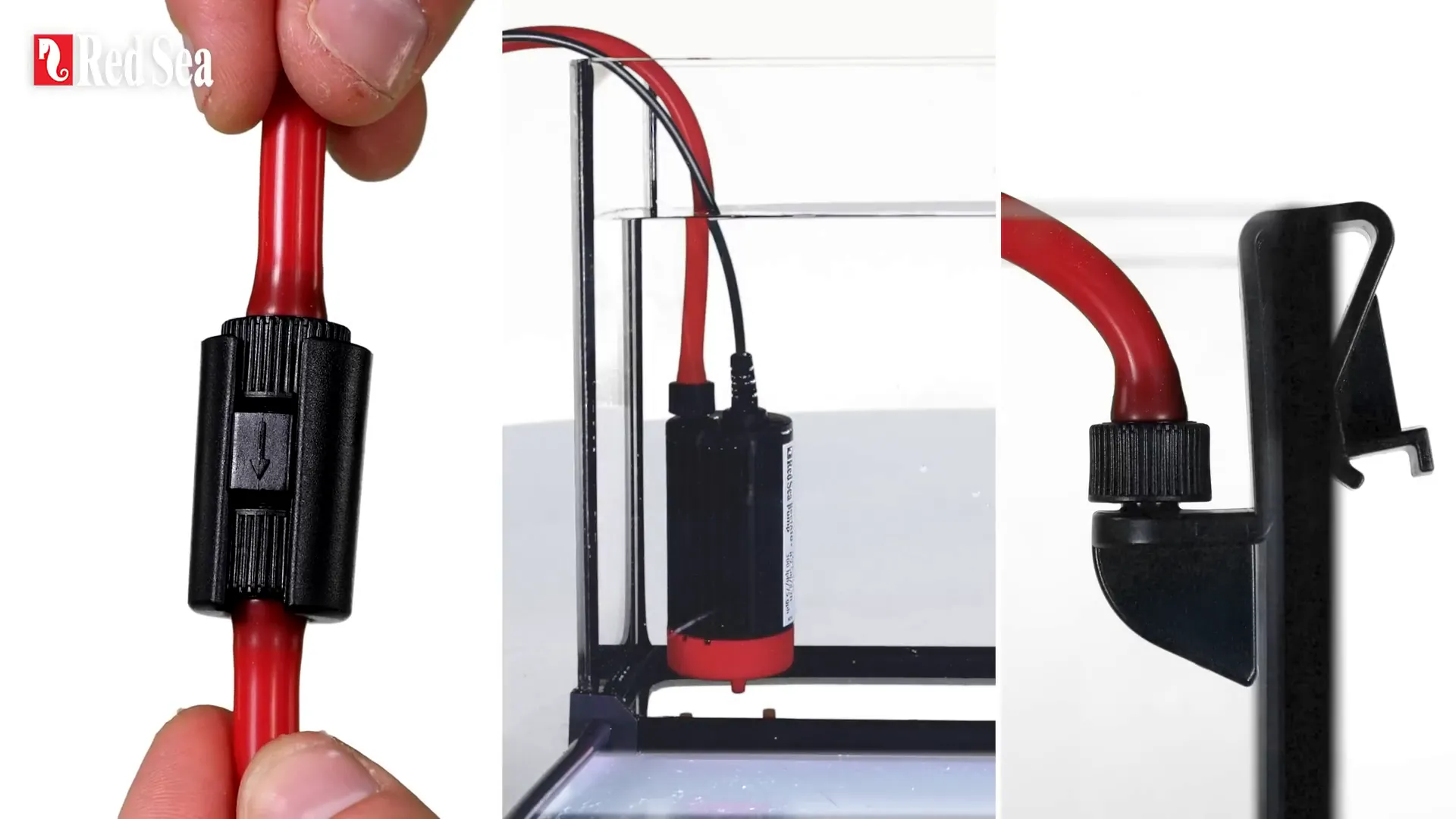

The system comes complete with 3 meters of silicone tubing, a siphon breaker, and a tube holder that directs water flow onto the interior glass of the tank. This design minimizes splashing and noise, making the top-off process more discreet and less disruptive.
Secure Tubing Connection
To prevent accidental disconnections, the pump, siphon breaker, and tube holder all include lock nuts that firmly secure the tubing in place. This attention to detail ensures your auto top-off system stays reliable and leak-free.
Accurate Temperature Monitoring with Digital Thermometer
The lower probe in the ATO sensor is attached to a digital thermometer that has been precalibrated to an accuracy of 0.1°C (0.18°F). This level of precision is essential for maintaining stable aquarium conditions, as even small temperature changes can affect coral health and fish behaviour.

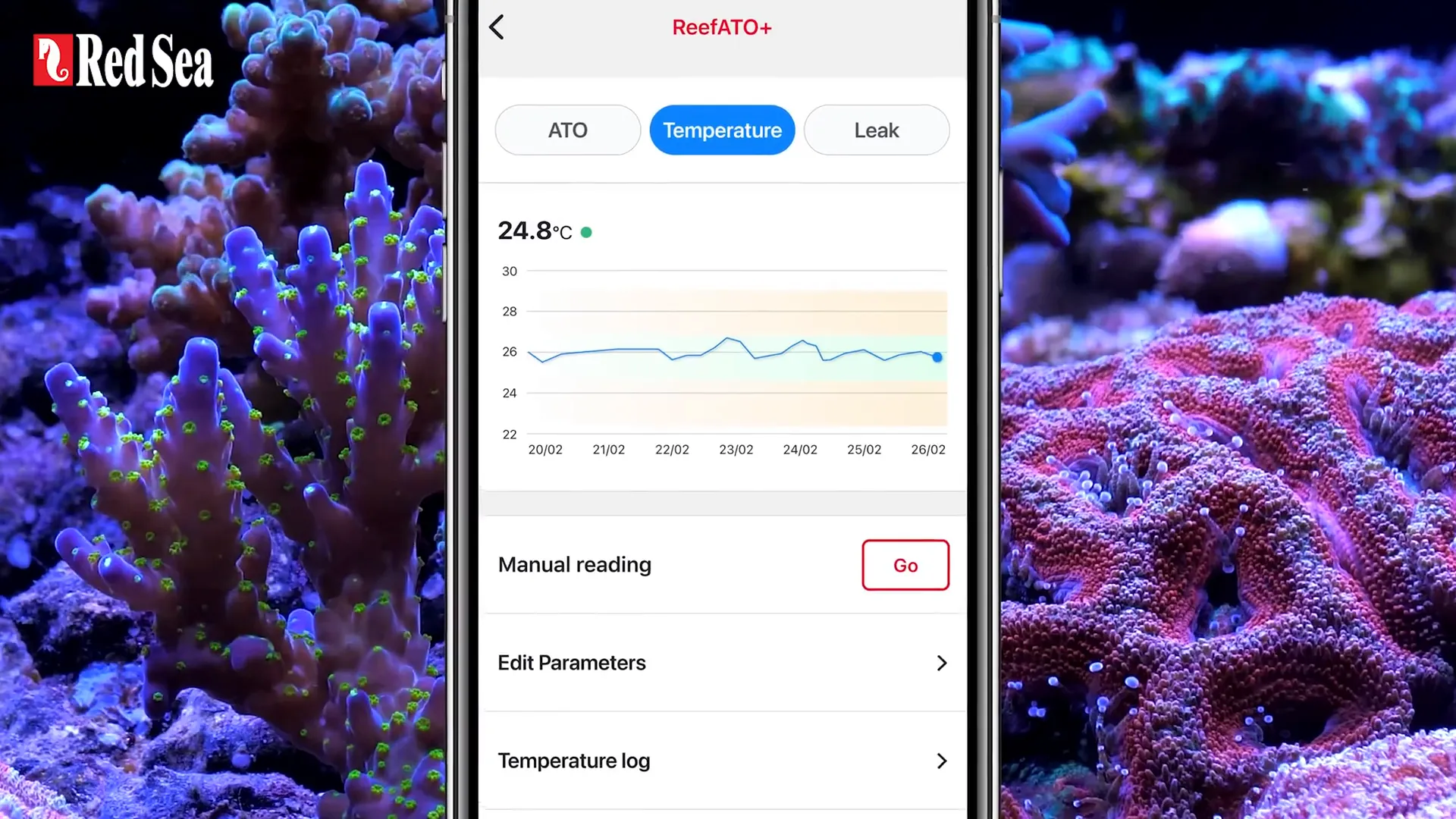

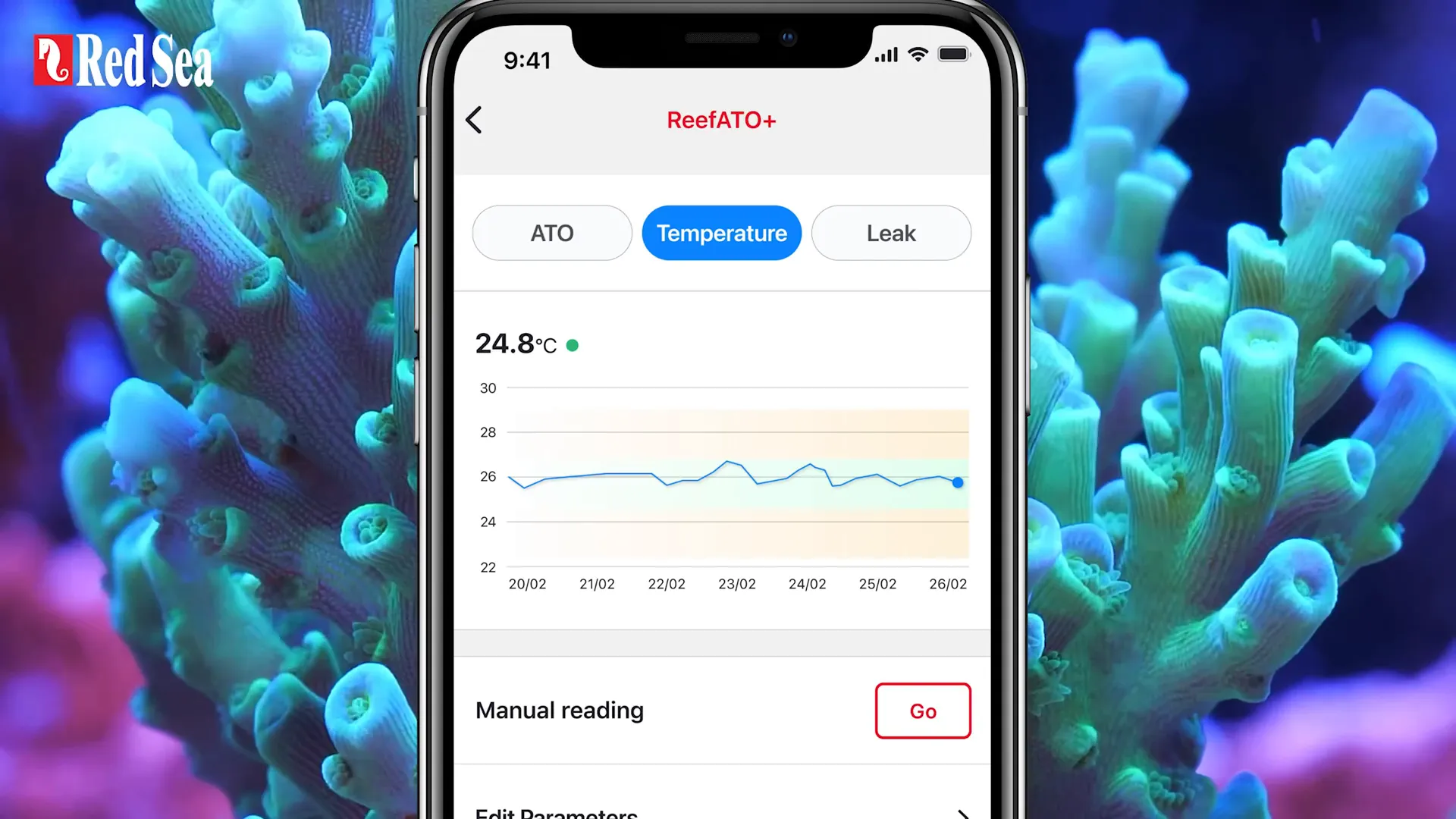

Through the ReefBeat system, you receive notifications if the water temperature strays outside your desired range. The platform also provides a detailed temperature log, allowing you to track trends and spot potential issues early.
External Leak Detection for Added Security

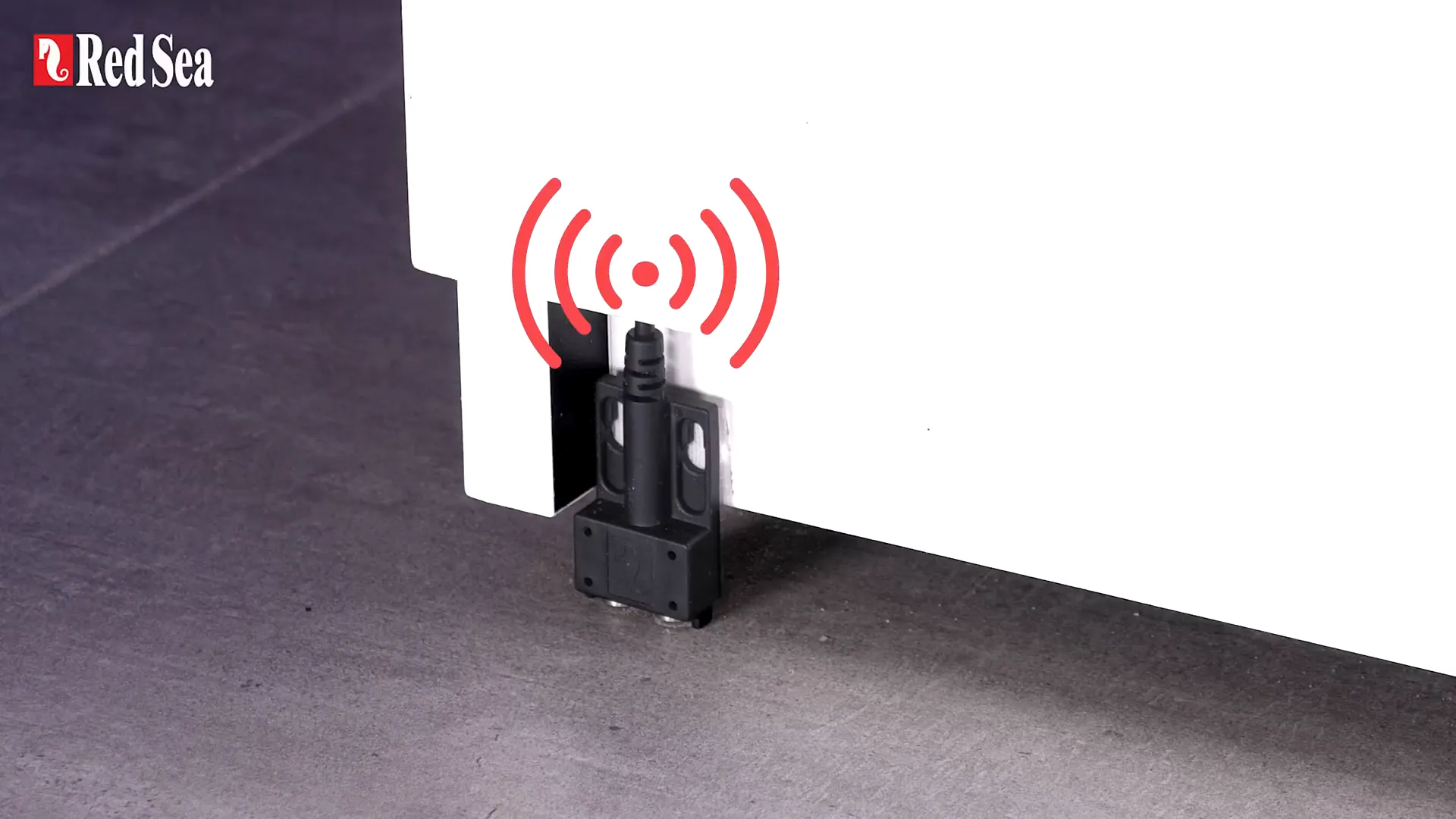

The Red Sea ReefATO Plus includes a titanium leak detector designed to alert you immediately if any leaks are detected around your aquarium setup. When a leak is sensed, an audible alarm sounds, and ReefBeat sends an instant notification to your device.
Moreover, if you have connected the ReefATO Plus to the ReefBeat quick actions emergency button, the system can automatically turn off other ReefBeat smart devices to prevent further damage — a critical feature that adds peace of mind for any reef keeper.
Smart Features That Simplify Aquarium Maintenance
The ReefATO Plus goes beyond basic automation and monitoring by offering several intelligent features designed to make your life easier:

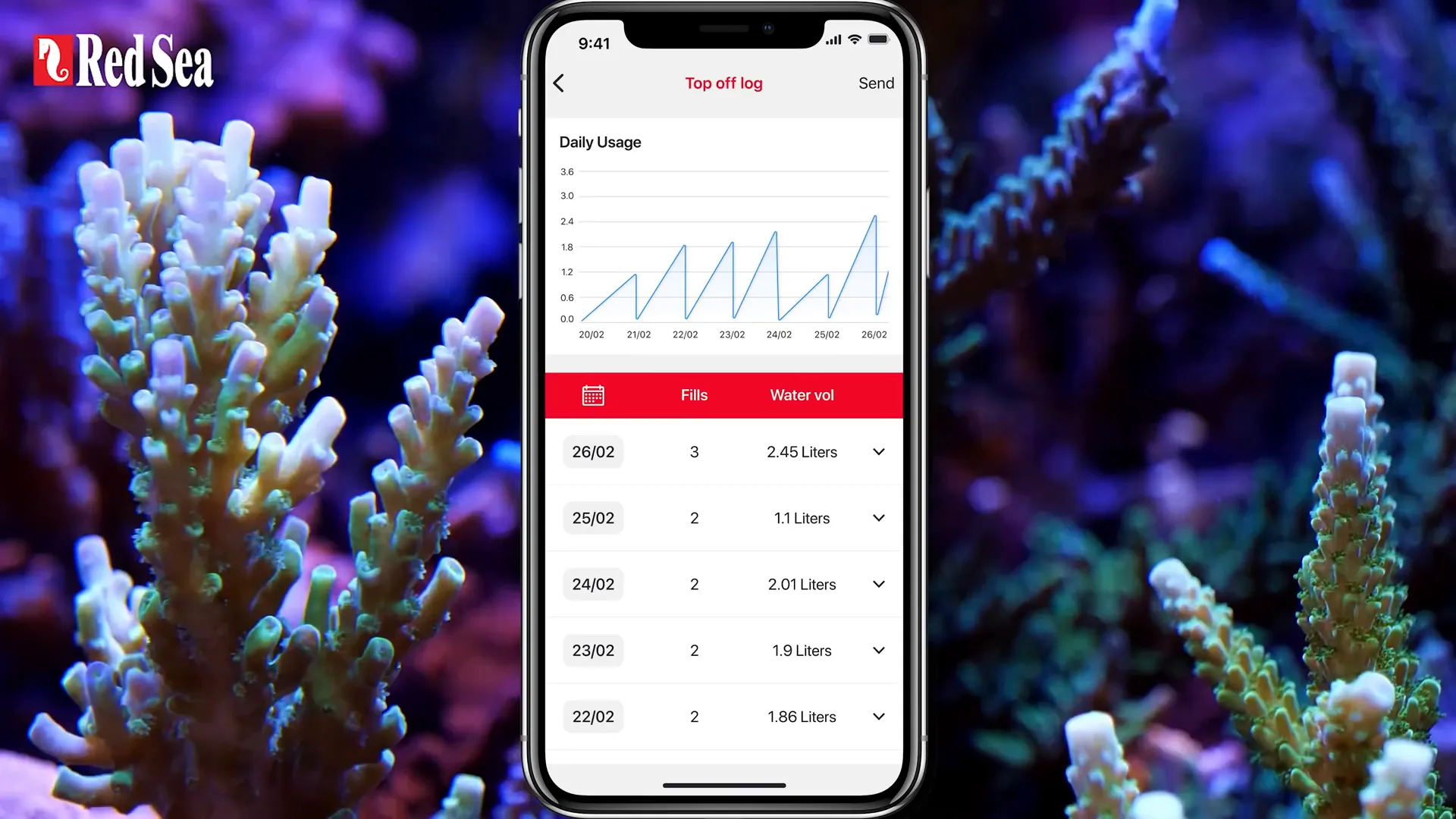

- Top-Off Log: Keeps track of your daily water consumption, helping you monitor your tank’s evaporation rate and water usage.
- Reservoir Volume Monitor: Reminds you to refill your RO water reservoir so you never run out mid-top-off.
- Dry Run Protection: Automatically switches off the pump if it runs dry or the impeller gets stuck, preventing damage to the pump.
- Maintenance Mode: When connected to ReefBeat quick actions, you can temporarily disable the top-off system during water changes or other maintenance tasks without turning off the entire system.
Why Choose the Red Sea ReefATO Plus?
The Red Sea ReefATO Plus is not just another auto top-off system. It is a thoughtfully engineered, fully featured device that integrates seamlessly with smart aquarium technology. Here’s why it’s a must-have for reef enthusiasts:
- Exceptional Reliability: With multiple backup sensors and fail-safe mechanisms, you can trust the ReefATO Plus to keep your tank topped off without interruption.
- Precision Monitoring: The titanium probes and digital thermometer provide highly accurate water level and temperature readings to maintain ideal tank conditions.
- Smart Ecosystem Integration: Being part of the ReefBeat ecosystem means you get real-time alerts, detailed logs, and the ability to control your aquarium devices remotely.
- Convenient Installation and Operation: The slimline pump, magnetic bracket, and secure tubing fittings make setup straightforward and maintenance hassle-free.
- Enhanced Safety Features: Leak detection, dry run protection, and emergency shutdown capabilities protect your investment and your home.
For anyone managing a reef aquarium, the Red Sea ReefATO Plus offers peace of mind and precision control, helping you focus on enjoying your vibrant underwater world rather than constantly worrying about equipment failures.
Frequently Asked Questions (FAQs) About the Red Sea ReefATO Plus
How does the Red Sea ReefATO Plus maintain stable salinity and water levels?
The system uses closely spaced titanium probes (only 3mm apart) to detect water levels with high precision. This small gap allows the pump to turn on and off quickly, preventing large fluctuations in water volume and salinity.
Can the ReefATO Plus work with tanks other than Red Sea models?
Yes, the sensor and pump system can be adapted to most aquarium setups. For Red Sea tanks, the sensor holder can directly replace the float valve for easy installation, but it is also versatile enough for other tanks.
What happens if the pump runs too long or gets stuck?
The ReefATO Plus calculates your average fill time and will automatically shut off the pump if it exceeds that time to prevent overflow. It also detects if the pump runs dry or the impeller is stuck and will switch off the pump to avoid damage.
How does the leak detector work?
The leak detector uses a titanium sensor placed externally. If it detects water where it shouldn't be, it triggers an audible alarm and sends an alert via ReefBeat. If connected to the emergency button, it can also shut off other devices to prevent further issues.
Does the system provide temperature monitoring?
Yes, the ReefATO Plus includes a digital thermometer attached to the lower probe, precalibrated to an accuracy of 0.1°C. It logs temperature data and notifies you if the temperature goes outside your preset range.
Can I perform water changes without the system topping off during the process?
Absolutely. When connected to ReefBeat’s quick actions, you can temporarily disable the top-off pump during maintenance or water changes, ensuring no unwanted water is added.
Is the pump noisy?
No, the pump is designed to operate quietly. Additionally, the tube holder directs water flow onto the interior glass to reduce splashing noise, providing a quiet and splash-free top-off experience.
Conclusion
The Red Sea ReefATO Plus is a fully featured, smart, and reliable auto top-off system that goes far beyond basic water level control. With its precise titanium probes, accurate temperature monitoring, leak detection, and smart ReefBeat integration, it offers reef aquarium owners a comprehensive solution for maintaining optimal tank conditions effortlessly.
Whether you are a seasoned reef keeper or just starting, this system provides peace of mind and convenience, allowing you to focus on enjoying your beautiful reef ecosystem. If you want to keep your tank stable, safe, and smart, the Red Sea ReefATO Plus is undoubtedly an investment worth considering.
