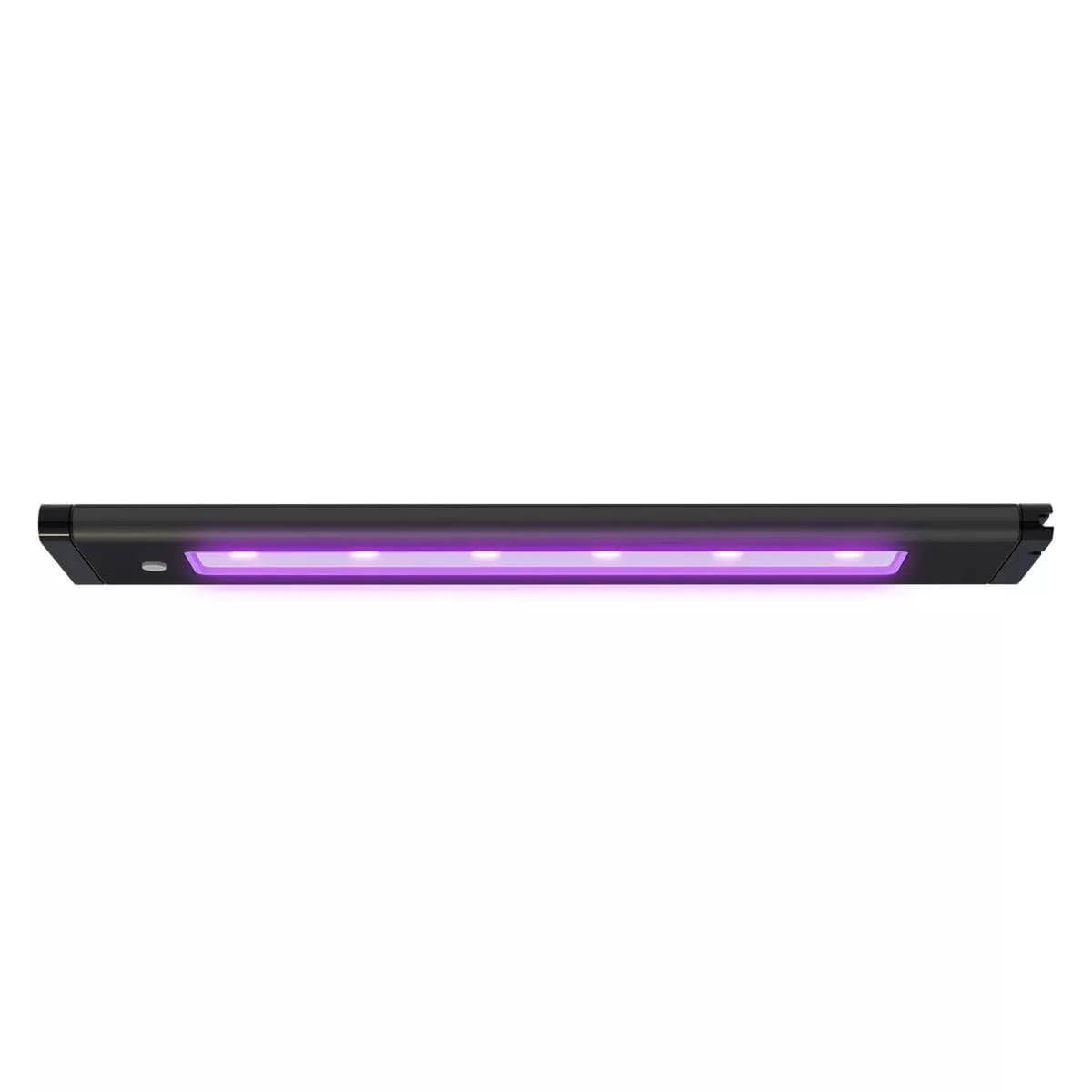

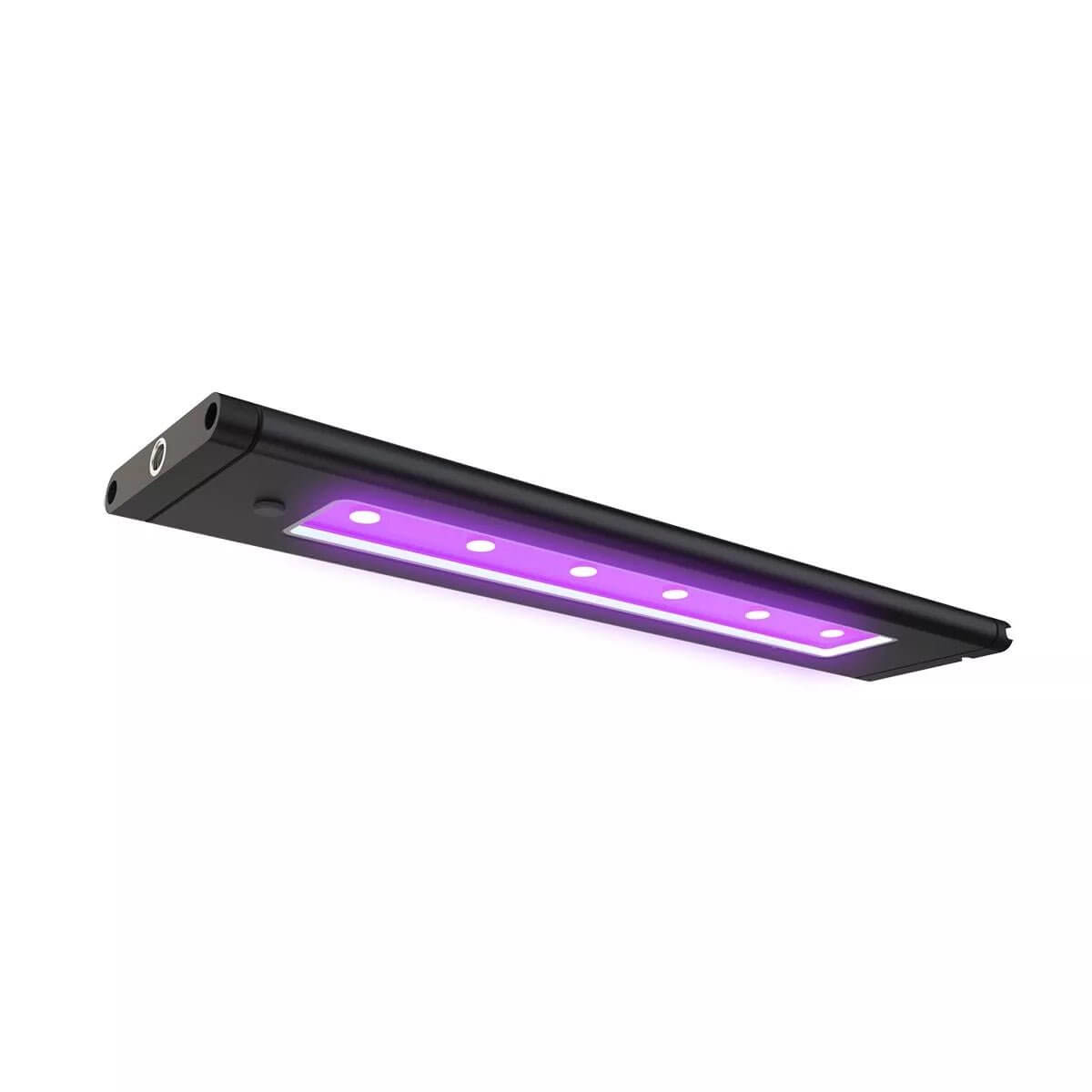

AI Blade Smart LED Strip Coral Glow

AI Blade Smart LED Strip Coral Glow

The AI Blade Smart LED Strip Coral Glow is a low-profile aquarium LED strip tuned to bring out coral fluorescence and lift the look of your tank. It suits reef keepers who want a supplemental "pop" light alongside a growth-focused fixture, or who want to add more glow to their existing lighting. It is offered in seven lengths and has wireless app control and a choice of mounting options.

Key Benefits

• Coral Glow LED mix that emphasises spectral peaks in the lower blue range and upper UV range, which show off coral fluorescence
• Exclusive EdgeField™ Optics for even PAR, smooth colour mixing and a natural shimmer effect
• Wide 95-degree spread from modular cluster LEDs, so light wraps around high points in the tank with minimal shadowing
• Works alone, stacked in parallel, or as supplemental fill lighting to improve coverage and reduce hotspots
• IP66 water resistance for use over an aquarium
• Passive, noiseless cooling, so there are no fans to hear
• Wireless smart control from your phone, plus onboard controls on the fixture
• Low-profile design with a flexible range of mounting solutions

Why Colour Your Way With the Blade

This is a different kind of strip light. The clustered, wide-angle LEDs give a smooth blanket of illumination rather than a harsh, spotty pattern. Combine 3 or more Blade strips and the shadowing is eliminated, giving light distribution comparable to traditional T5 fixtures with greater efficiency. You can also run a Blade with any existing light fixture to fill in dark areas and even out the coverage.

The Coral Glow Spectrum

The Blade comes in four spectrums: Coral Grow, Coral Glow, Refugium and Freshwater. The Coral Glow model is the one built to showcase fluorescence. It works best as a supplemental source of "pop", either paired with a Blade Coral Grow or used to augment your current lighting.

• Peak performance is best achieved at a 1:2 ratio of Glow to Grow
• One of each is perfectly acceptable when less light is needed
• Each strip has roughly one light cluster group per foot of fixture length
• Tight grouping and balanced diode placement give the Blade platform its balance and shimmer
• Each cluster group holds 24 diodes: 12x Royal Blue, 6x 430nm, 3x 415nm and 3x 405nm

How to Use

• Choose the length that suits your tank and fit it with the supplied Tank Rest or Mounting Clips, or with one of the optional mounting solutions below.
• Connect the power adapter. The cable is 3 m (9.8') long.
• Control the light wirelessly from an iOS or Android device with the free myAI or Mobius app, both available on Google Play and the App Store.
• In the app you can customise spectrum intensity, set custom schedules for each light, or pick one of the in-app templates.
• Use the onboard controls on the fixture to cycle through spectrums without the app.

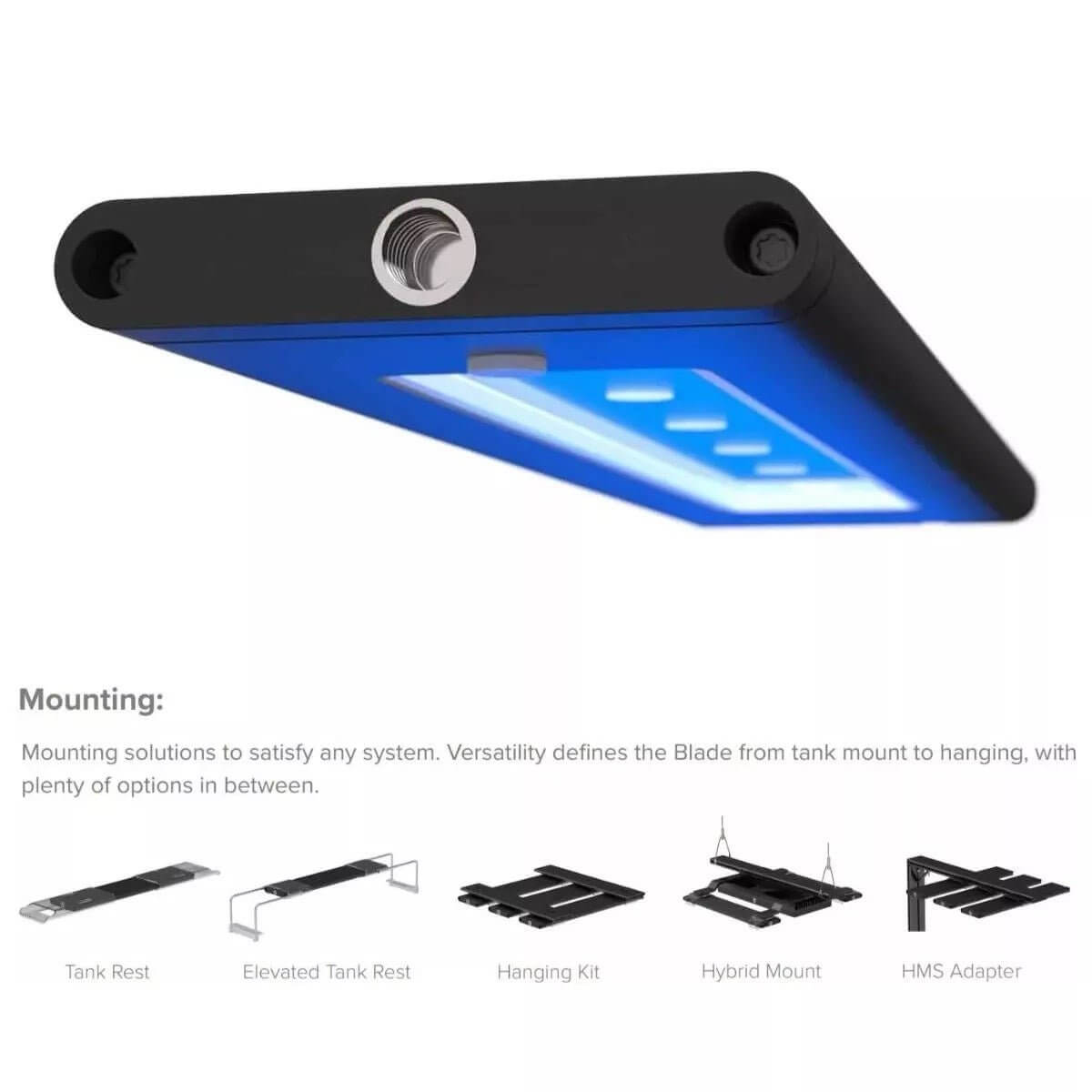

Mounting Options

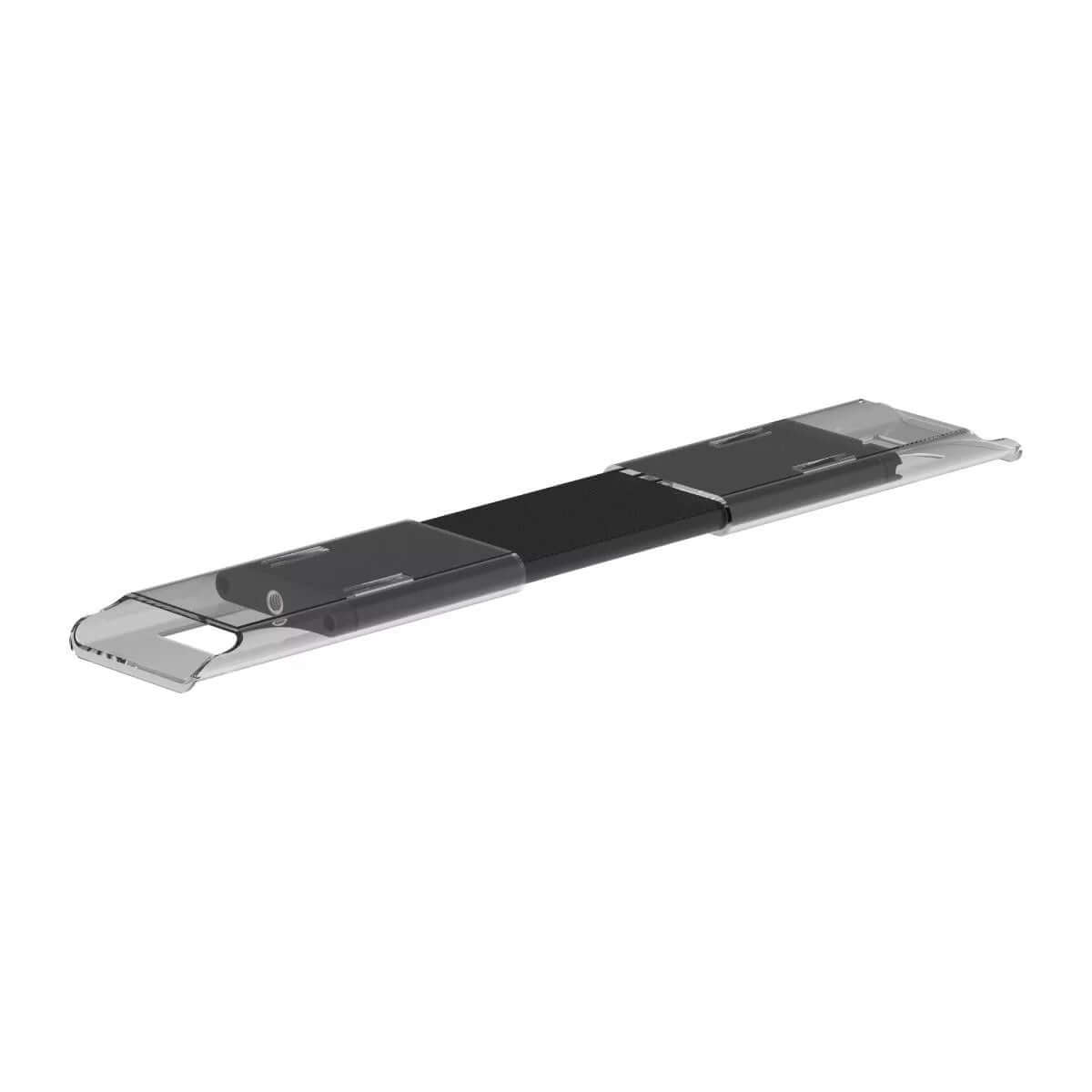

• Tank Rest: a low-profile mount that sits directly on top of the tank and extends up to 11.4 cm (4.5") on either side of the fixture. Included with all Blade lights up to 39" (99 cm).
• Mounting Clips: included with all Blade lights over 39" (99 cm). They are compatible with the AI HMS Single Arm Mount and HMS Hanging Kit rails.
• Elevated Tank Rest: a sturdy tank mount for rimmed or rimless tanks. Compared to the standard Tank Rest, it increases light spread and gives easier access into the aquarium.
• Hanging Kit: made from brushed aluminium with a black finish, for suspending the Blade above the aquarium. It also lets you mount 3, 4 or 6 light bars in parallel for increased coverage and a streamlined look.
• Hybrid Mount: combines Blade strips with one or more AquaIllumination Hydra or EcoTech Radion pendant fixtures.
• HMS Adapter Arm: another mounting route for the Blade.
• Custom Mounting: M8 mounting threads at each end let you build your own mount.

The Elevated Tank Rest, Hanging Kit, Hybrid Mount and HMS Adapter Arm are mounting solutions you can choose for your set-up. The Tank Rest or Mounting Clips come with the fixture, depending on length.

Suitable For

• Reef and coral aquariums where you want to highlight fluorescence
• Reef keepers who already run a growth-focused light and want extra "pop"
• Tanks of many sizes, thanks to seven lengths and multiple mounting solutions
• Aquarists who want to combine several strips for even, T5-style coverage

Compatibility

• Controlled wirelessly via the myAI or Mobius app on iOS and Android
• MXM compatible: Neptune Systems, EcoTech Marine and AquaIllumination have joined forces to bring MXM to life. Your EcoTech and AI pumps and lights can be controlled wirelessly through Apex and Apex Fusion, so you do not need to switch between multiple apps.
• Can be used alongside any existing light fixture as supplemental or fill lighting
• Mounting clips are compatible with the AI HMS Single Arm Mount and HMS Hanging Kit rails

Specifications

• Width: 7 cm (2.8")
• Height: 1.6 cm (0.7")
• LEDs per cluster: 12x Royal Blue, 6x 430nm, 3x 415nm, 3x 405nm (24 diodes per cluster group)
• Power consumption: 20-140W at full power (model dependent)
• Universal input range: 100-240V AC / 50-60Hz
• Cable length: 3 m (9.8')
• PSU regulatory compliance: UL, CE and RoHS
• Water resistance: IP66 rated
• Spread: 95 degrees
• Cooling: passive and noiseless
• Tank Rest adds up to 22.9 cm (9") of additional length

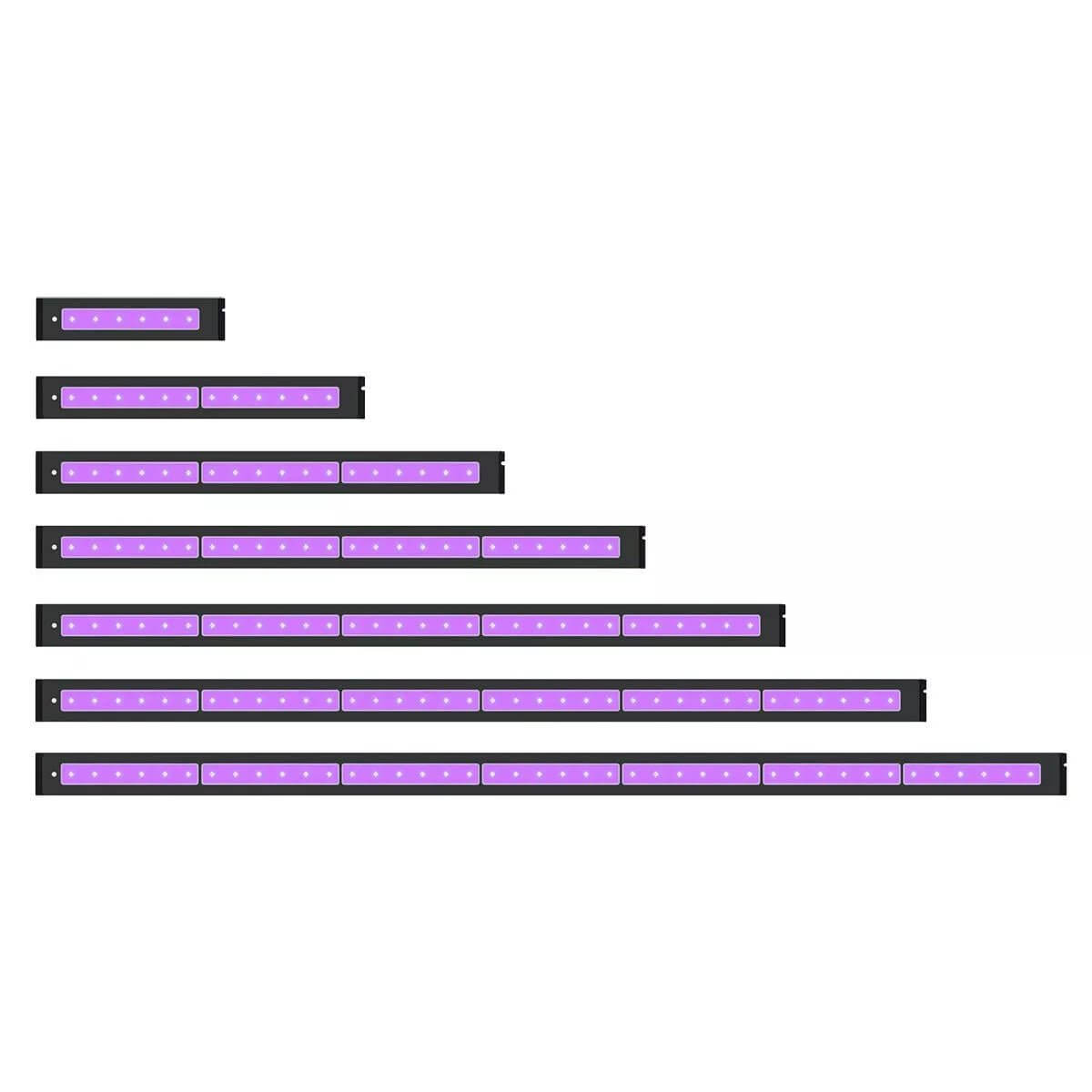

Available Sizes

Available in seven lengths, from smallest to largest:

• 30.7 cm (12.1")
• 53.6 cm (21.1")
• 76.5 cm (30.1")
• 99.3 cm (39.1")
• 122.2 cm (48.1")
• 145 cm (57.1")
• 167.9 cm (66.1")

What's Included

• 1x AI Blade Coral Glow
• 1x Power Adapter
• 1x Blade Tank Rest mounting solution (included with fixtures up to 39") or 2x Blade Mounting Clips (included with fixtures over 39")

Frequently Asked Questions

What is the Coral Glow strip best used for?
It is designed as a supplemental source of "pop" for reef tanks. Its LED mix emphasises the lower blue and upper UV ranges that show off coral fluorescence. It can be paired with a Blade Coral Grow or added to your existing lighting.

What ratio of Glow to Grow should I run?
Peak performance is best achieved at a 1:2 ratio of Glow to Grow. One of each is perfectly acceptable when you need less light.

Which length should I choose?
The Blade is offered in seven lengths, from 30.7 cm (12.1") to 167.9 cm (66.1"). Measure your tank and pick the length that suits it. Remember that the Tank Rest adds up to 22.9 cm (9") of additional length. For even, T5-style light distribution, combine 3 or more strips.

Which mount comes with the light?
Lights up to 39" include the low-profile Tank Rest. Lights over 39" include 2x Mounting Clips, which suit the AI HMS Single Arm Mount and HMS Hanging Kit rails. Other mounts, such as the Elevated Tank Rest, Hanging Kit, Hybrid Mount and HMS Adapter Arm, are alternative mounting solutions.

How do I control the light?
Use the free myAI or Mobius app on iOS or Android to adjust spectrum intensity, set custom schedules or choose in-app templates. The fixture also has onboard controls for cycling through spectrums. Through MXM, the light can also be controlled from Apex and Apex Fusion.

Is the Blade noisy, and is it water resistant?
The Blade uses passive, noiseless cooling, so there are no fans. It is IP66 rated for water resistance.
