AI Blade Smart LED Strip Freshwater

AI Blade Smart LED Strip Freshwater

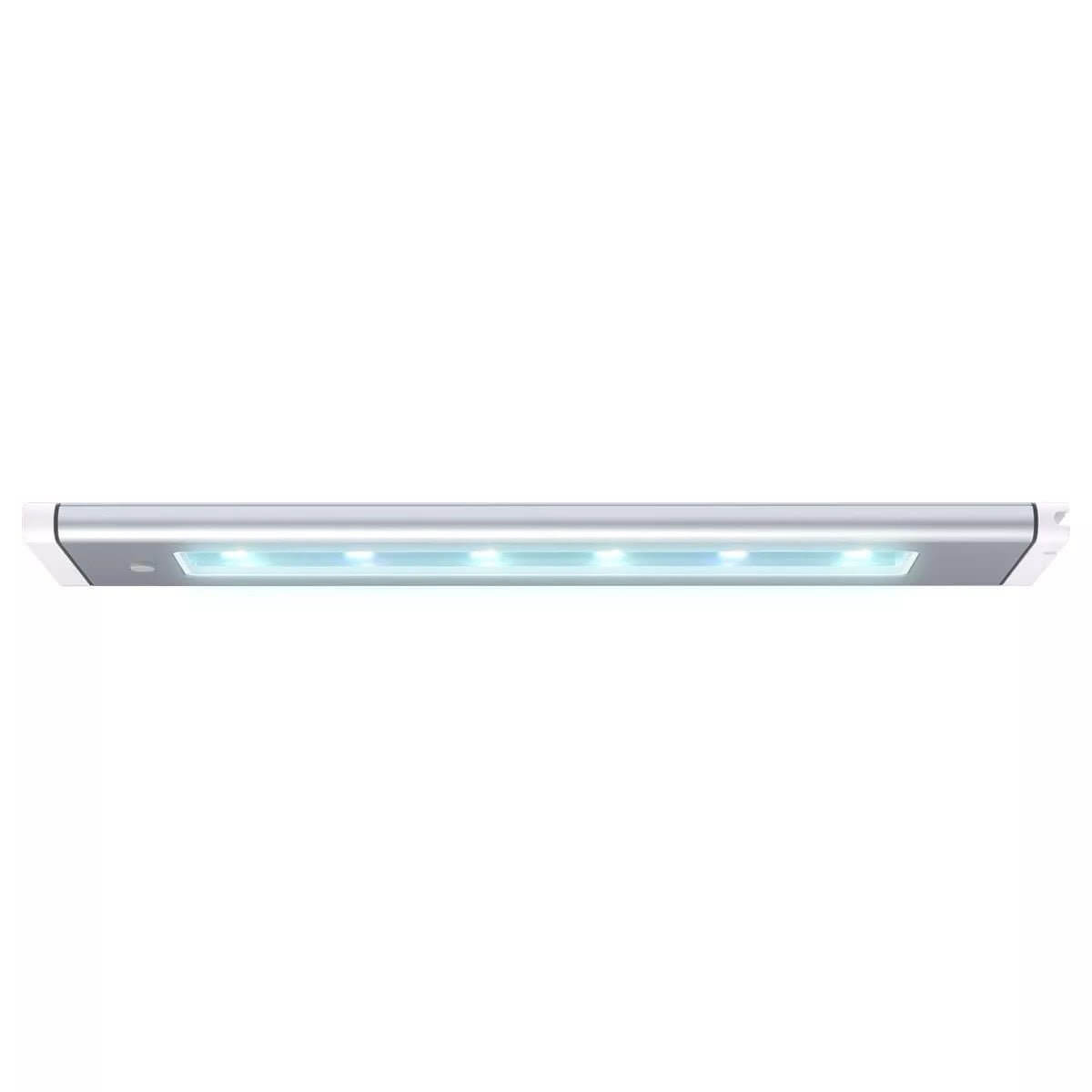

AI Blade Smart LED Strip Freshwater is a tunable aquarium LED strip for freshwater tanks, built to bring out vivid colour and support healthy plant growth. It suits planted-tank keepers and community-tank owners who want a low-profile light with flexible mounting, a wide spectrum range and smart app control.

Key Benefits

• Balanced white spectrum with a highly tunable kelvin range, plus ample Red, Blue and Green output for plant growth and vivid fish and plant colours.
• Exclusive EdgeField™ Optics deliver even PAR, smooth colour mixing, a 95-degree spread and a natural shimmer effect in the water.
• Wide-angle, modular cluster LEDs let the light wrap around high points in the tank, giving a smooth blanket of illumination with minimal shadowing.
• Combine 3 or more Blade strips for shadow elimination and even light distribution comparable to traditional T5 fixtures, with greater efficiency.
• Works well alone, stacked in parallel, or alongside an existing light fixture as supplemental or fill lighting to improve coverage and reduce hotspots.
• IP66 water resistance for use over a humid aquarium.
• Passive, noiseless cooling, so there is no fan noise.
• Low-profile design with a Tank Rest or Mounting Clips included, depending on fixture length.

How the Light Is Built

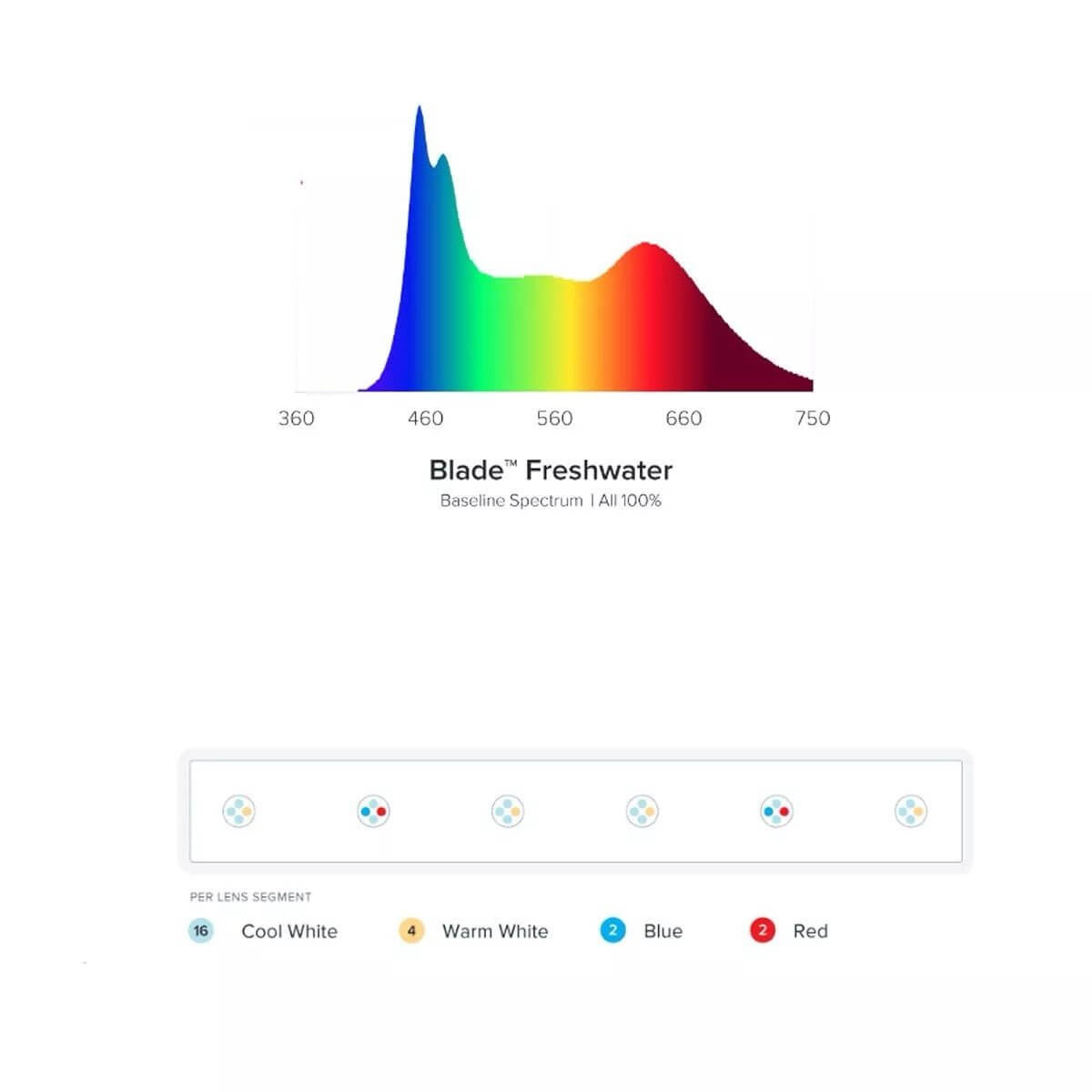

The Freshwater model uses an LED mix that can produce a large number of spectral combinations to suit your tank. Each strip carries roughly one light cluster group per foot of fixture length. The tight grouping and balanced diode placement give the Blade its colour balance and shimmer. Every cluster group contains 24 diodes:

• 16x Cool White
• 4x Warm White
• 2x Red
• 2x Blue

The Blade is also offered in other spectrums: Coral Grow, Coral Glow and Refugium. This listing is the Freshwater version.

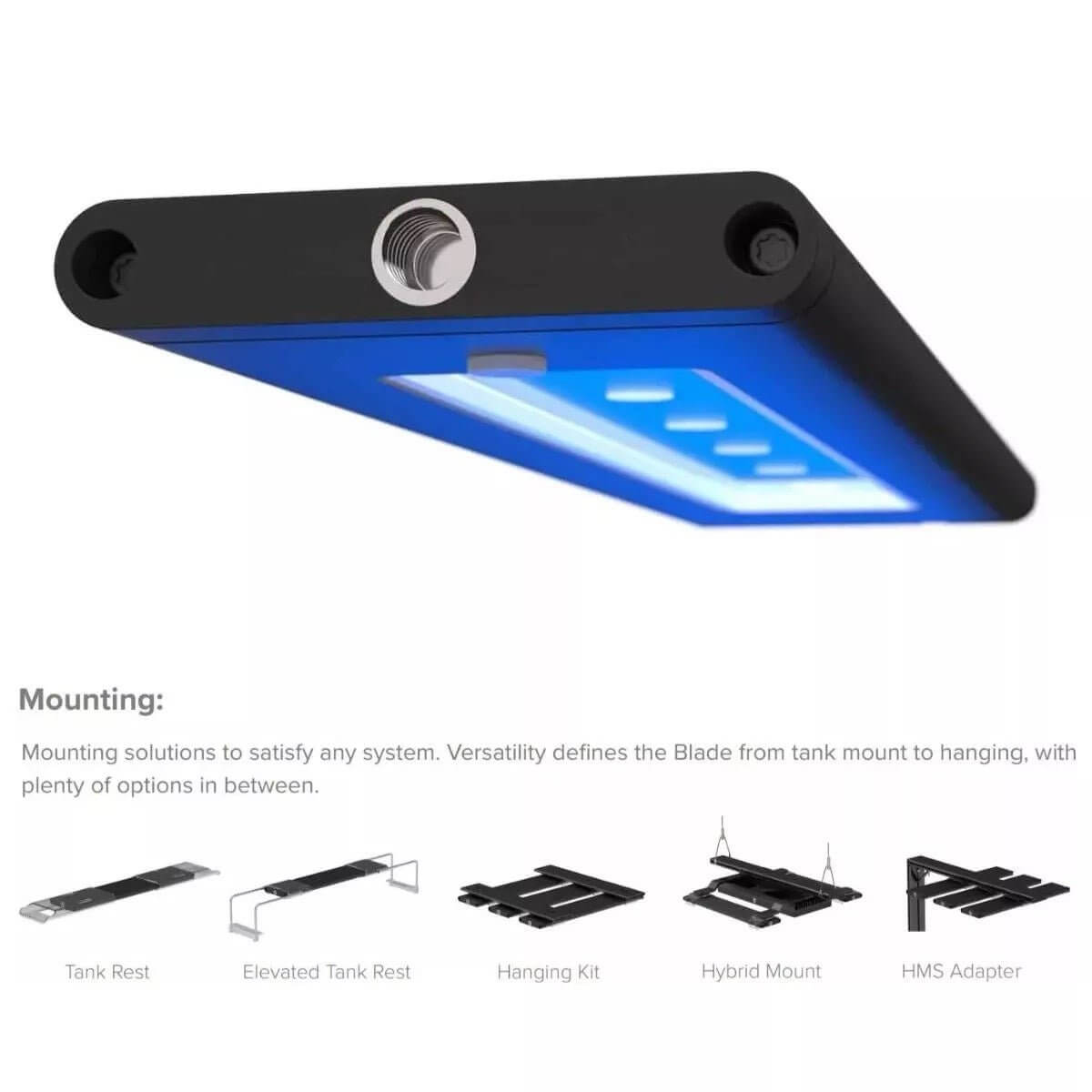

Mounting Options

The Blade is designed for many mounting solutions. You can choose from a Tank Rest, Elevated Tank Rest, Hanging Kit, Hybrid Mount or HMS Adapter Arm.

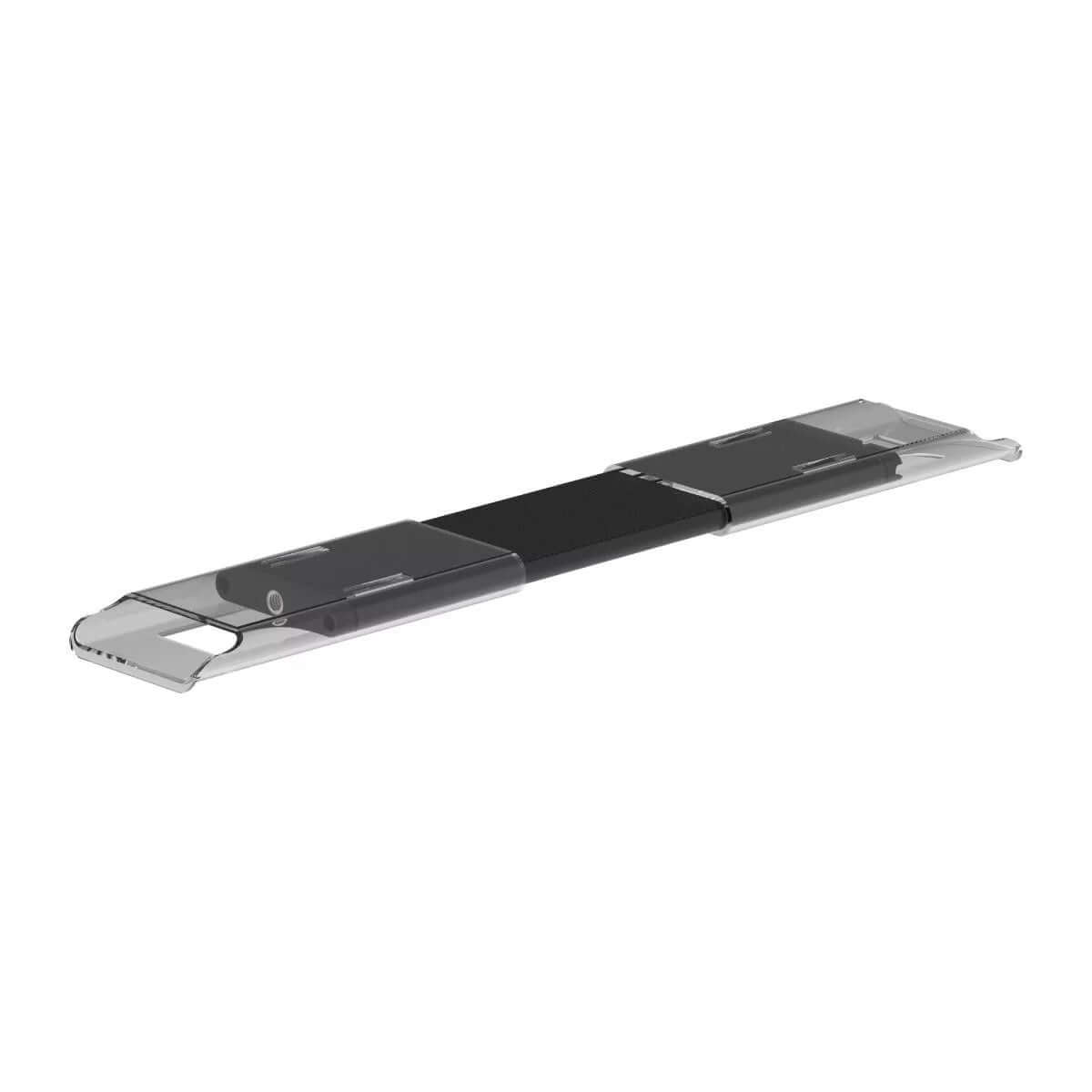

• Tank Rest: included with all Blade lights up to 39 inches (99 cm). This low-profile mount sits directly on top of the tank and extends up to 11.4 cm (4.5") on either side of the fixture.
• Mounting Clips: included with all Blade lights over 39 inches. They are compatible with the AI HMS Single Arm Mount and HMS Hanging Kit rails.
• Elevated Tank Rest: a sturdy tank mount for both rimmed and rimless tanks. Compared with the standard Tank Rest, it increases light spread and gives easier access into the aquarium.
• Hanging Kit: made from high-quality brushed aluminium with a black finish, for suspending the Blade above the aquarium. It also lets you mount 3, 4 or 6 light bars in parallel for increased coverage and a streamlined look.
• Hybrid Mount: designed to combine Blade strips with one or more AquaIllumination Hydra or EcoTech Radion pendant fixtures.
• Custom Mounting: M8 mounting threads at each end make it easy to build your own mount.

How to Use

• Mount the strip using the Tank Rest or Mounting Clips that come with it, or choose one of the other mounting options above.
• Connect the power adapter. The cable is 3 m (9.8') long.
• Control the light wirelessly from an iOS or Android device with the myAI or Mobius app. Both are free to download from Google Play and the App Store.
• In the app, adjust spectrum intensity and set custom schedules for each light, or pick one of the in-app templates.
• Each Blade also has onboard controls for cycling through spectrums.

Suitable For

• Freshwater aquariums, including planted tanks.
• Rimmed and rimless tanks, with the right mount.
• Single-strip setups, multi-strip parallel setups, or supplemental lighting alongside an existing fixture.

Compatibility

• Works with MXM, a collaboration between Neptune Systems, EcoTech Marine and AquaIllumination. This brings compatible EcoTech and AI pumps and lights under the wireless control of Apex and Apex Fusion, so you do not need to switch between multiple apps.
• Mounting Clips fit the AI HMS Single Arm Mount and HMS Hanging Kit rails.
• The Hybrid Mount pairs Blade strips with AquaIllumination Hydra or EcoTech Radion pendant fixtures.

Specifications

• Width: 7 cm (2.8")
• Height: 1.6 cm (0.7")
• LEDs per cluster: 16x Cool White, 4x Warm White, 2x Blue, 2x Red
• Power consumption: 20-140W at full power (model dependent)
• Universal input range: 100-240V AC / 50-60Hz
• Cable length: 3 m (9.8')
• PSU regulatory compliance: UL, CE and RoHS
• Water resistance: IP66 rated
• Control: myAI or Mobius app, plus onboard spectrum controls
• Cooling: passive and noiseless
• Mounting threads: M8 at each end
• The Tank Rest adds up to 23 cm (9") of additional length.

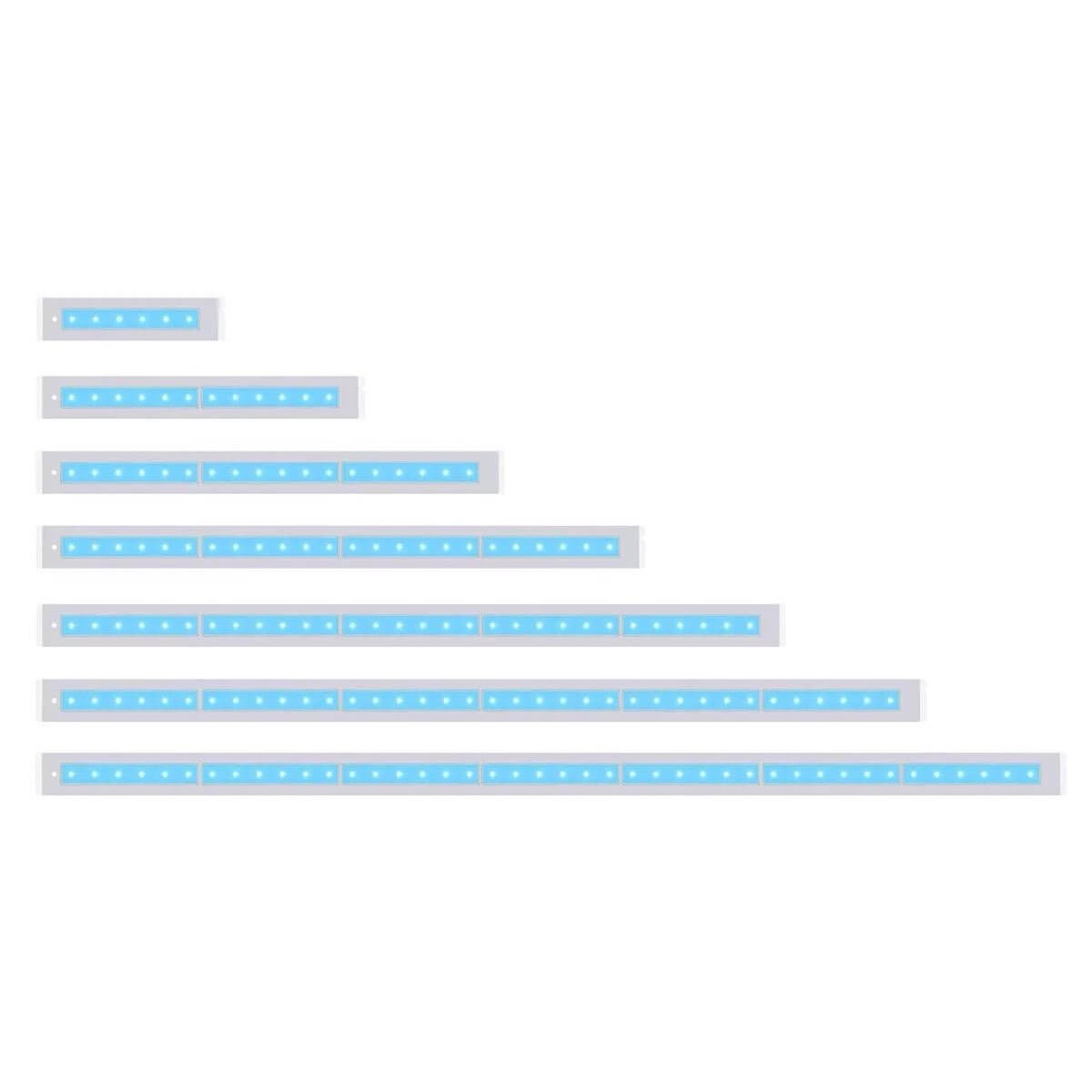

Available Sizes

Available in 7 lengths, from 12 to 66 inches:

• 12.1" (30.7 cm)
• 21.1" (53.6 cm)
• 30.1" (76.5 cm)
• 39.1" (99.3 cm)
• 48.1" (122.2 cm)
• 57.1" (145 cm)
• 66.1" (167.9 cm)

What's Included

• 1x AI Blade Freshwater
• 1x Power Adapter
• 1x Blade Tank Rest Mounting Solution (included with fixtures up to 39") or 2x Blade Mounting Clips (included with fixtures over 39")

Frequently Asked Questions

Can I control the Blade from my phone?
Yes. It can be controlled wirelessly on iOS and Android through the myAI or Mobius app, both free on Google Play and the App Store. You can adjust spectrum intensity, build custom schedules for each light or use the in-app templates.

Can I use it alongside the light I already have?
Yes. The Blade can be used with any existing light fixture as supplemental or fill lighting to improve coverage and reduce hotspots.

How many strips do I need to avoid shadows?
One strip gives a smooth spread with minimal shadowing thanks to its 95-degree cluster LEDs. When 3 or more Blade strips are combined, the result is shadow elimination and even light distribution comparable to traditional T5 fixtures.

Which mount comes with it?
Lights up to 39 inches come with a low-profile Tank Rest. Lights over 39 inches come with 2x Mounting Clips that suit the AI HMS Single Arm Mount and HMS Hanging Kit rails. The Elevated Tank Rest, Hanging Kit, Hybrid Mount and HMS Adapter Arm are other mounting options for the Blade.

Is it noisy, and can it get wet?
It uses passive, noiseless cooling, so there is no fan. It is IP66 water resistant, which suits use above an aquarium.

Which length should I choose?
The Blade is available in 7 lengths from 12 to 66 inches. Compare the lengths listed above with your tank. Remember the supplied Tank Rest adds up to 23 cm (9") to the overall length.
