AutoAqua Smart Doser 2 Hang On Dosing Pump

AutoAqua Smart Doser 2 Hang On Dosing Pump

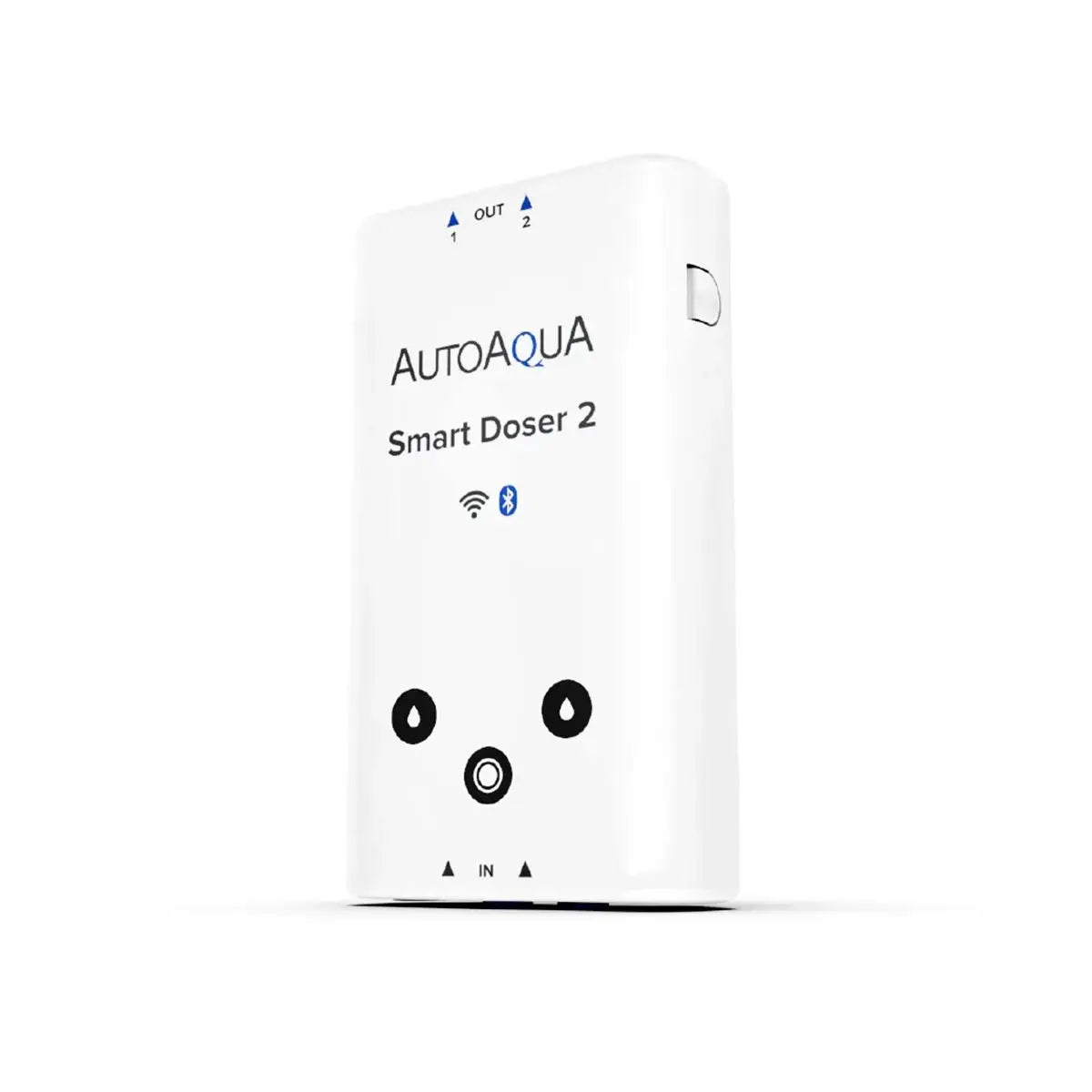

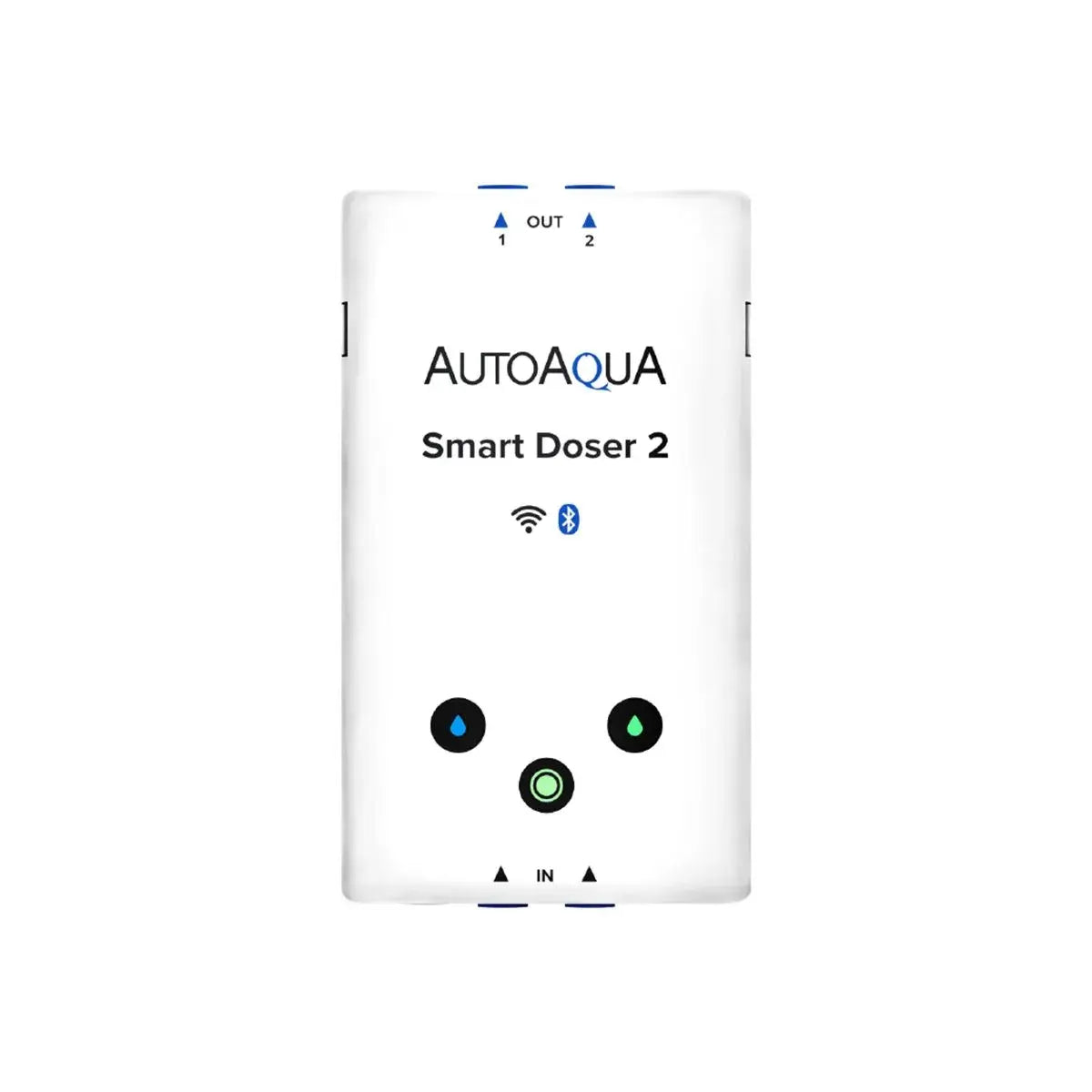

AutoAqua Smart Doser 2 Dosing Pump

• Hang-on-Back and Wall Mount Both Included
• Ultra-Thin Body That Mounts Almost Anywhere

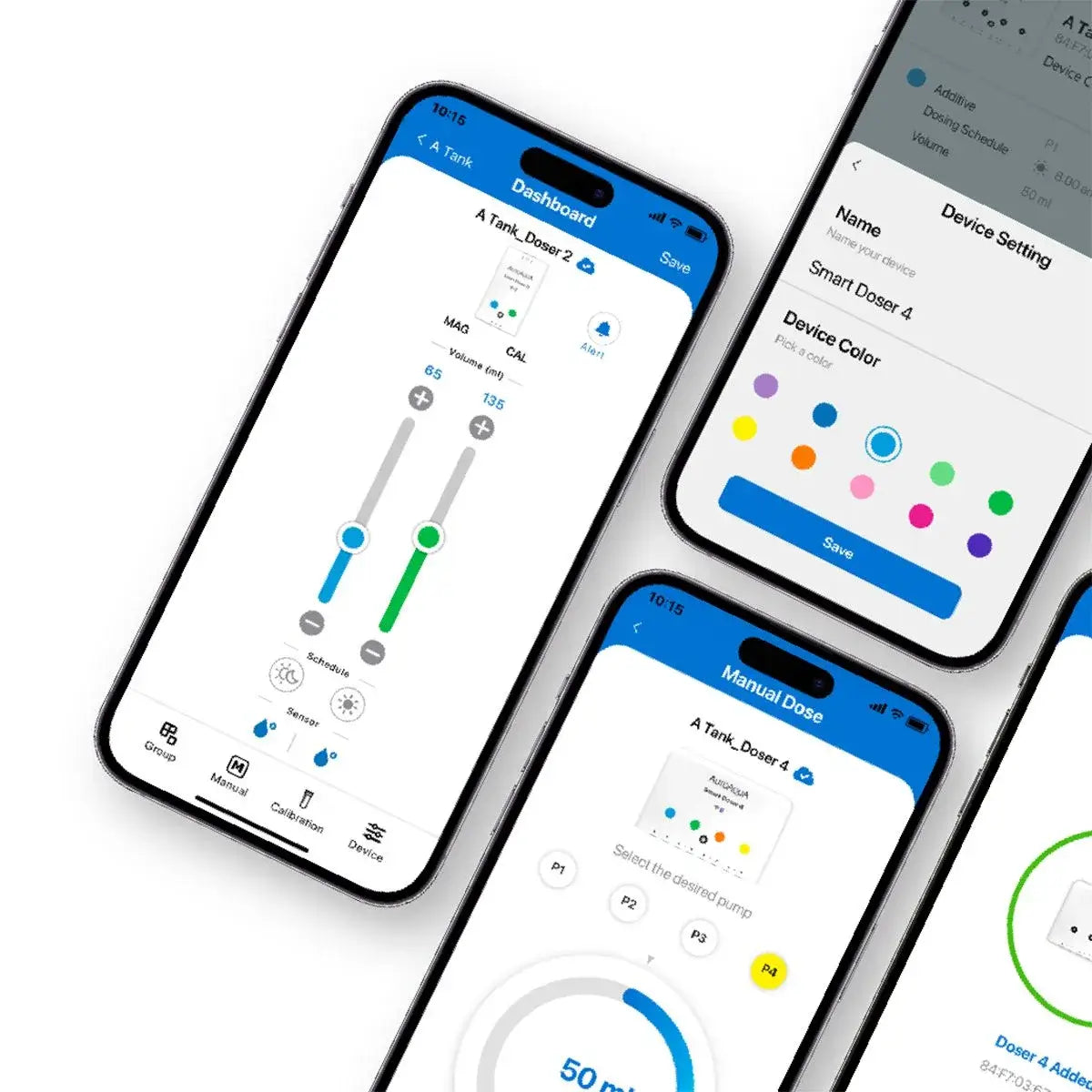

• Smart Dosing Control Through the aquaLine App
• Dual WiFi + Bluetooth for Fast Setup

AquatoAqua Smart Doser 2 is designed for those that want dependable, app-controlled dosing without headaches. Through the aquaLine app, you get easy dosing scheduling and powerful safety features that help keep your aquarium stable long term.

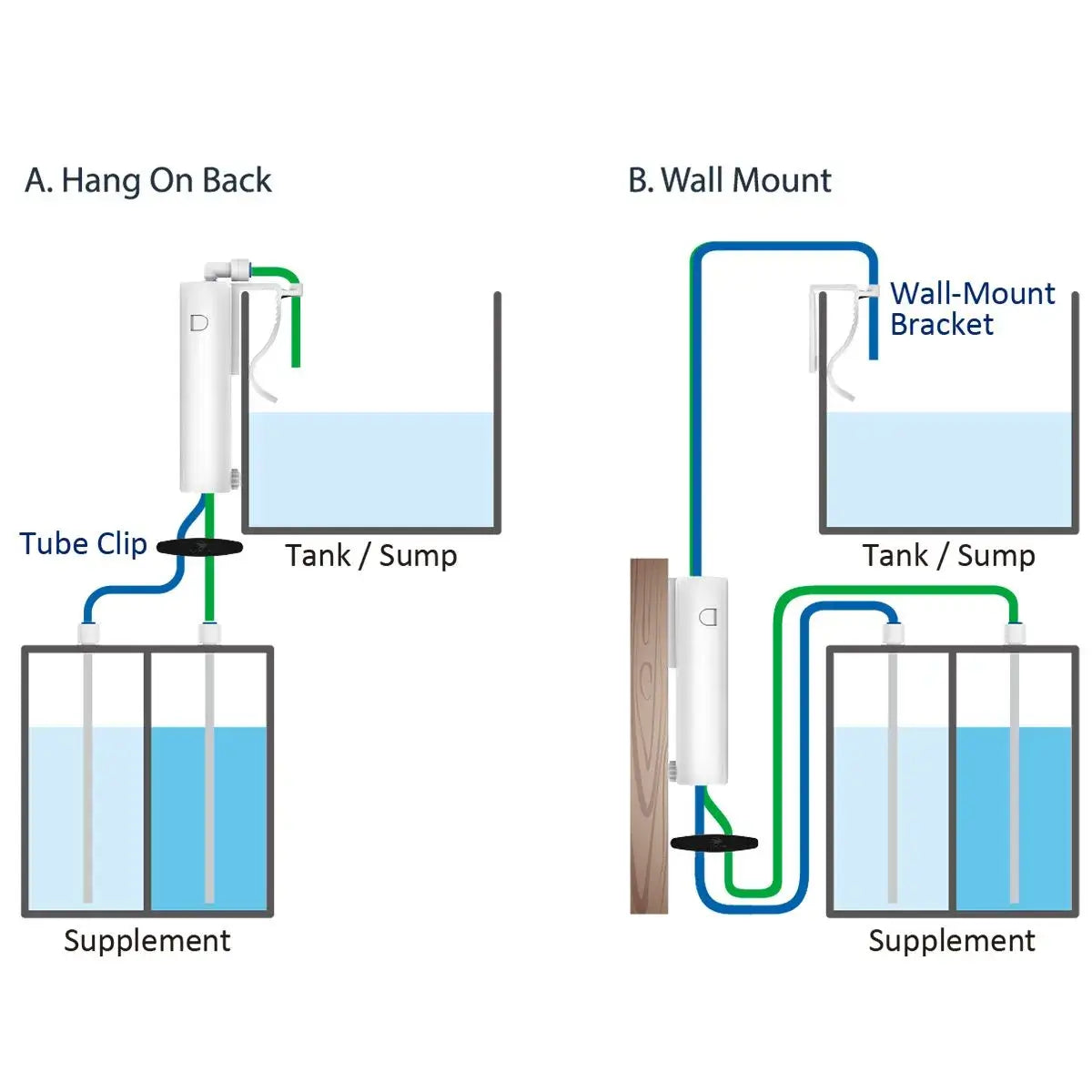

Mount It Your Way

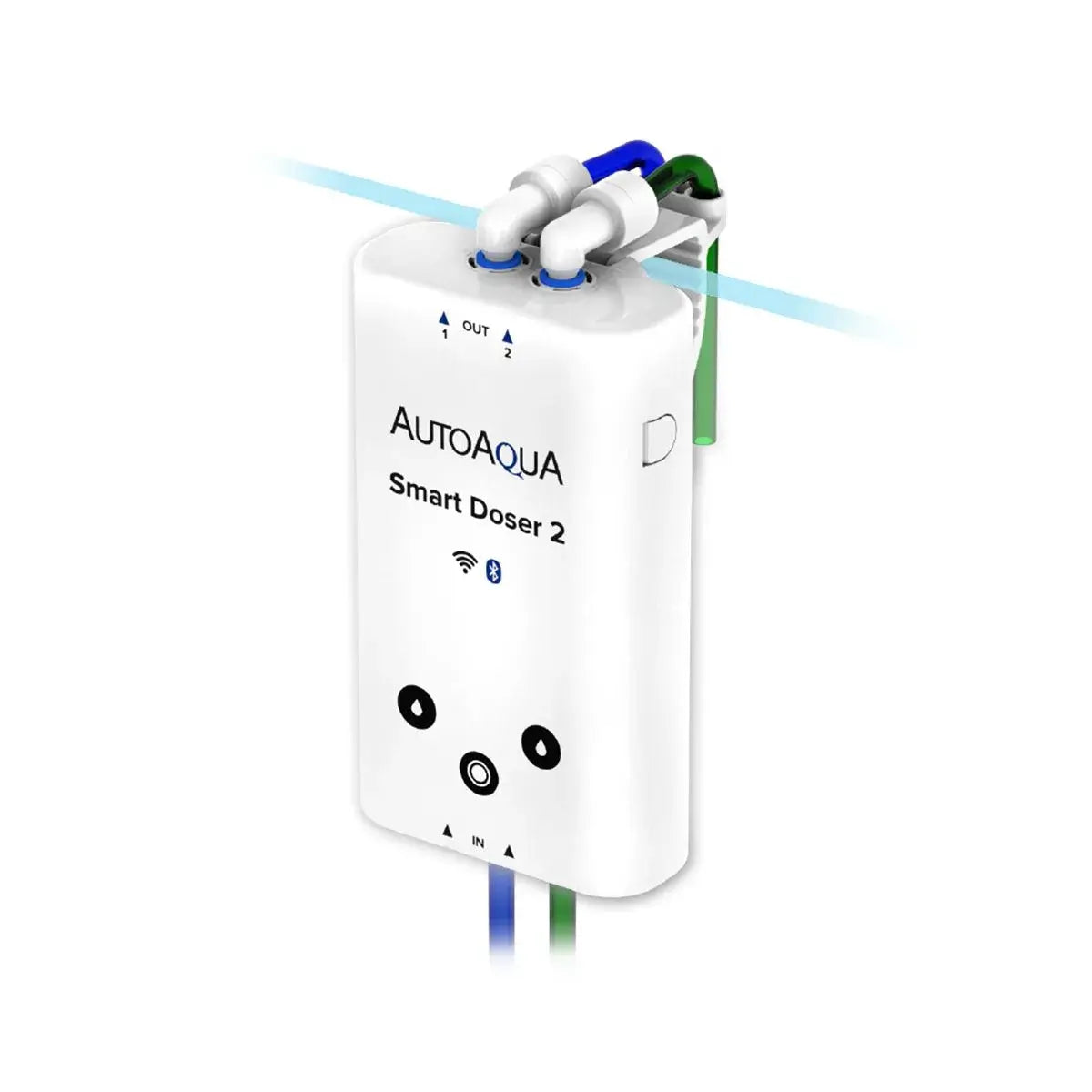

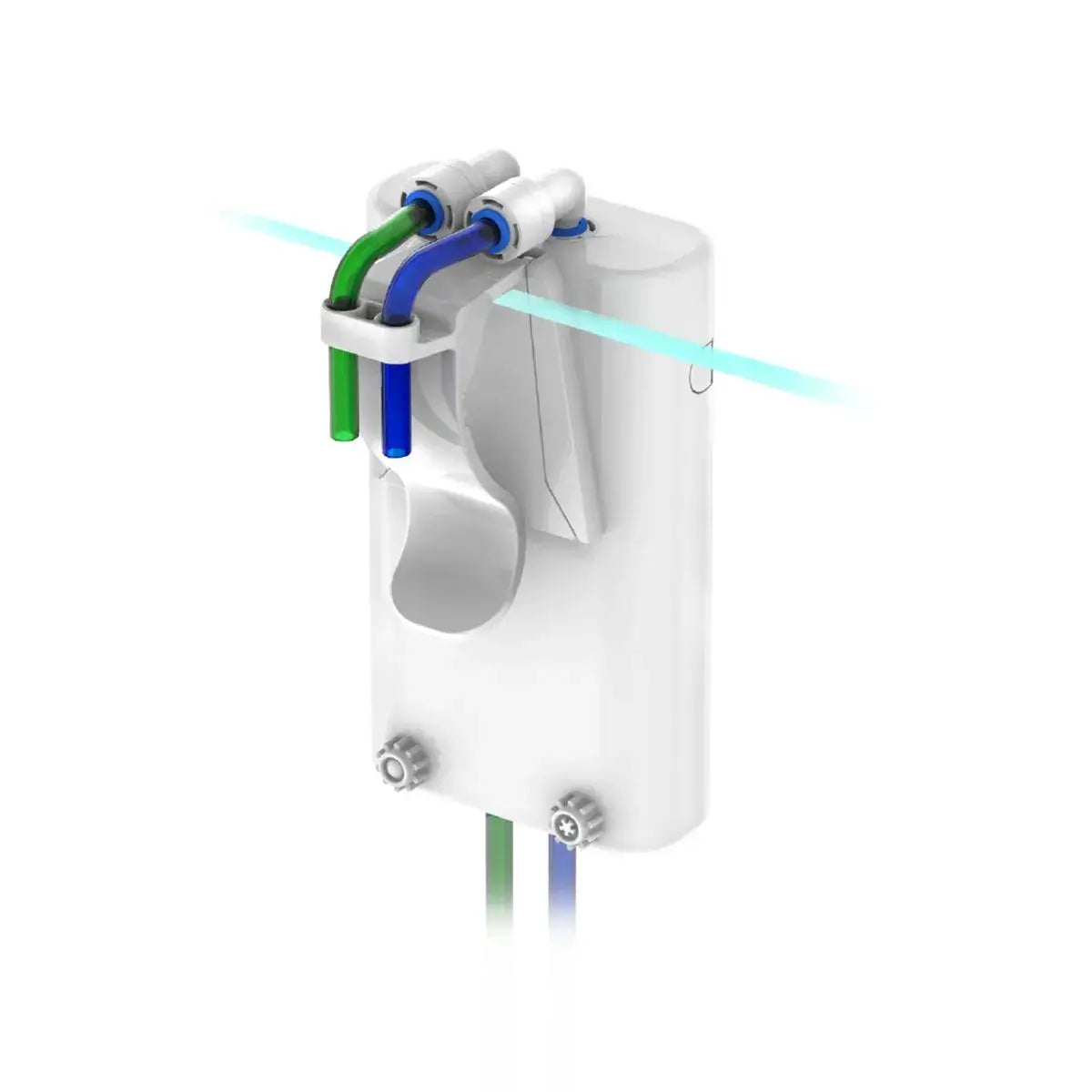

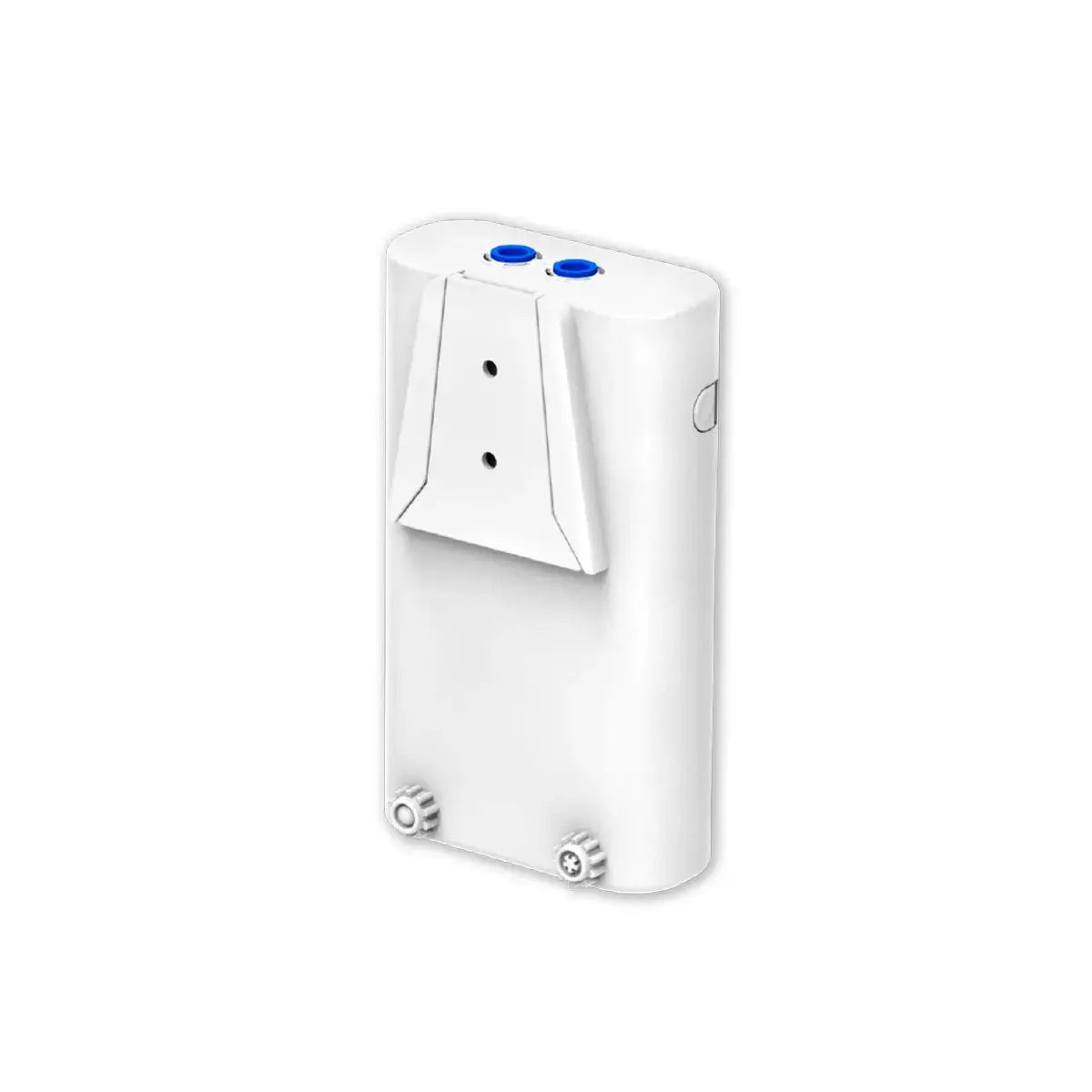

The innovative Hang-On-Back mount is perfect for nano and AIO tanks. For larger reef systems, the included wall bracket makes placement just as easy. The pump is incredibly slim (only 35mm / 1.4") which makes it simple to mount where other dosers don’t fit.

Patented Empty Monitor

A built-in optical sensor detects when your supplement bottle is empty and sends an instant alert through the app. This helps prevent chemistry swings from missed doses.

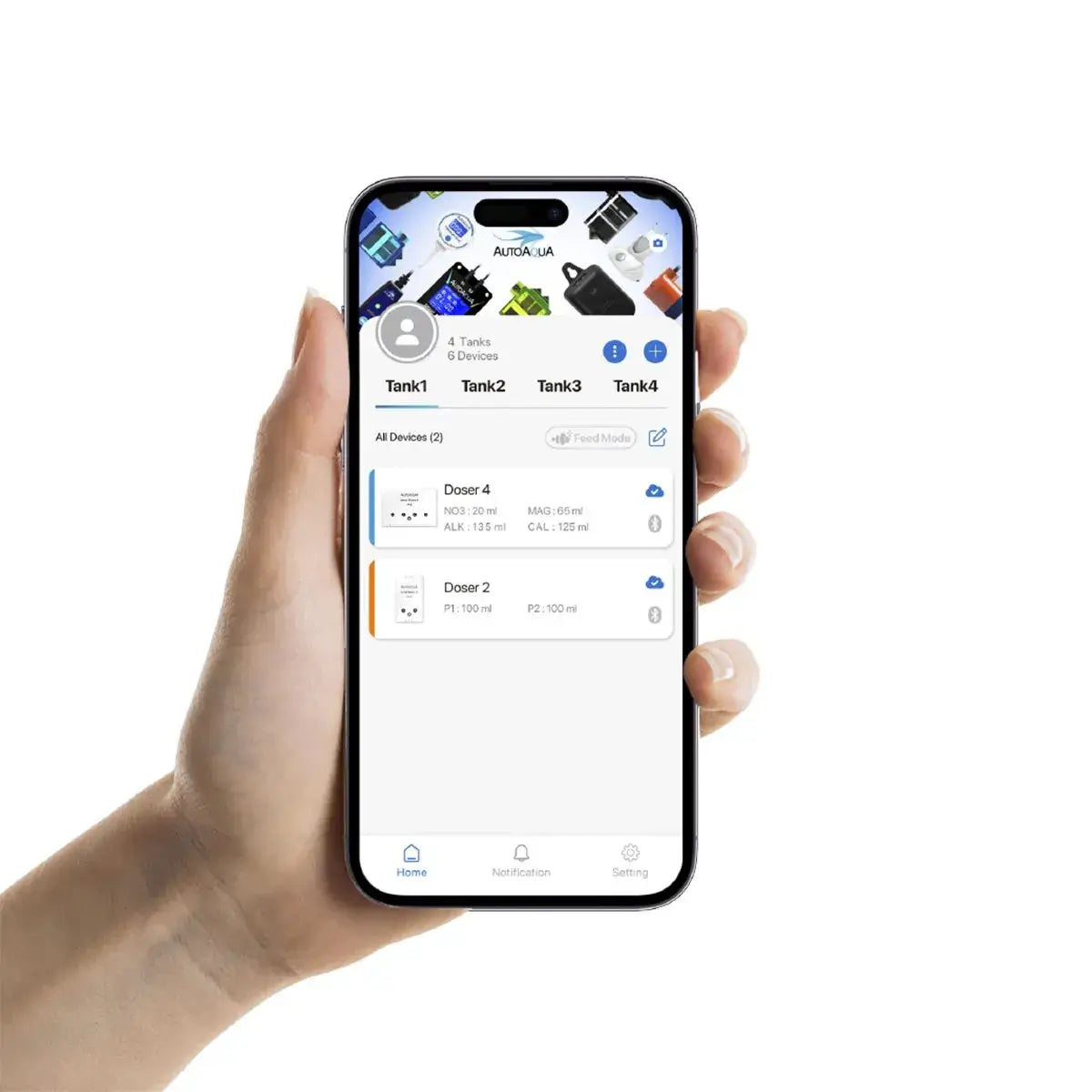

Easy Scheduling & Device Grouping

Set up dosing the way that makes sense for your aquarium. Automatic Mode lets you enter the total daily volume and the app will distribute it evenly throughout your chosen time window. Manual Mode is available for one-off adjustments or quick corrections.

• Automatic and Manual modes
• 3 Daily Schedules: Daytime, Nighttime, or 24-Hour
• Daily Programs Without Overlap or Complex Math

Group Multiple Devices

Running more than one supplement? Smart Doser 2 can work with up to 8 pumps at the same time through the AWS Cloud system. The app will coordinate all pumps so nothing overlaps and every dose stays on schedule.

Smart Safeguards and Helpful Extras

Power Outage & Restoration

Your settings are saved even after a power outage thanks to memory allocation. No battery necessary.

Patented Empty Monitor

A built-in optical sensor detects when your supplement bottle is empty and sends an instant alert through the app. This helps prevent chemistry swings from missed doses.

Peace of Mind

Receive instant notifications about any problems monitored by aquaLine.

Push Connect Fittings

The Smart Doser utilizes 1/4" push connect fittings for an easy-to-use, yet secure and leak-free connection.

Feed Mode

Stop all dosing during feeding or maintenance.

Calibration

Calibrate your Smart Doser 2 for the most accurate dosing.

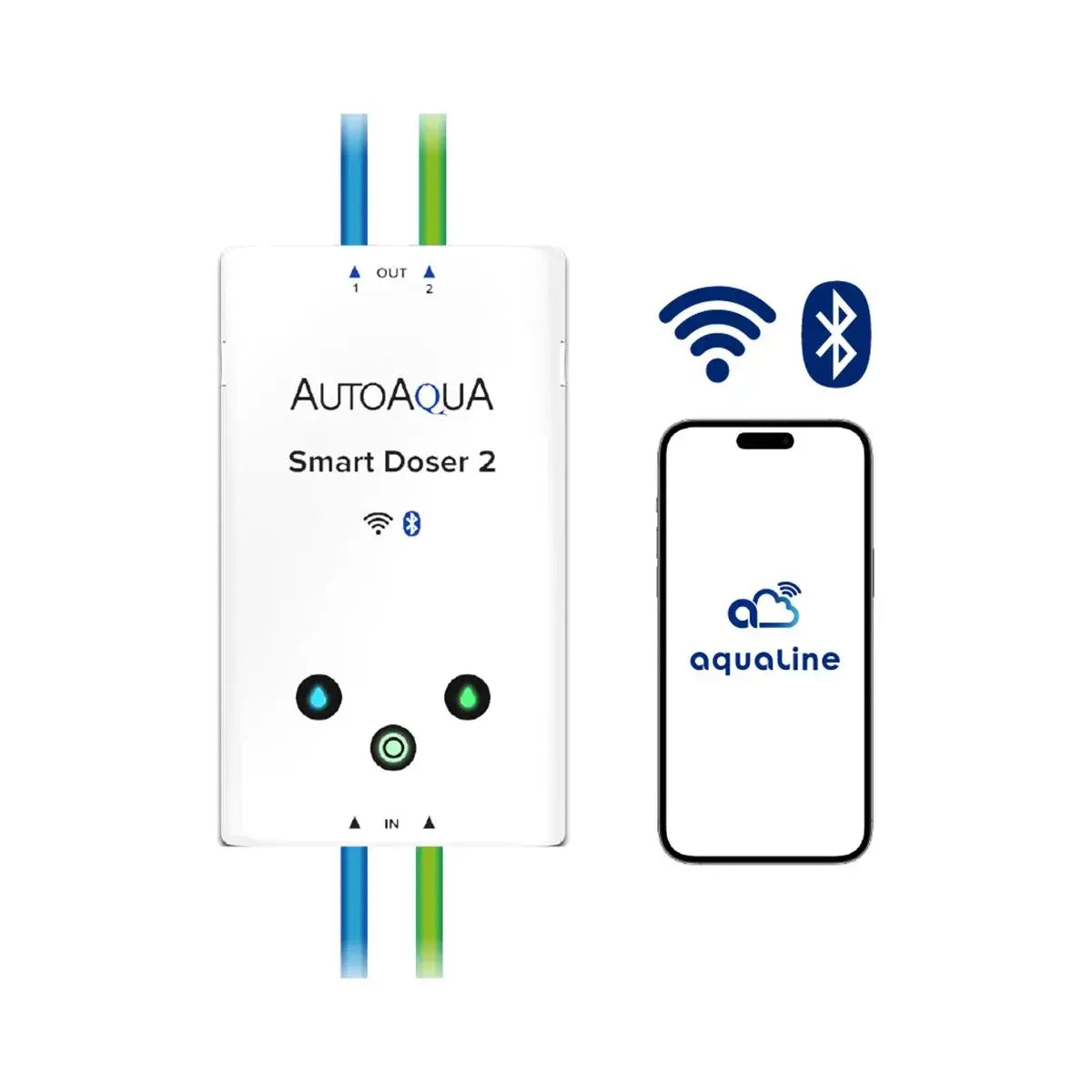

WiFi & Bluetooth Dual Connectivity

Dual connectivity provides fast setup and ensures that you stay connected wherever you are.

Specifications

• Power:
  • Input: 100-240 VAC 50-60 Hz
  • Output: 12 VDC / 1 A
  • Cable Length: 6 feet (180 cm)
• Slim Gear Peristaltic Pump:
  • Power: 2 W @ 12 VDC
  • Suction Head: 20 feet (610 cm)
  • Max. Flow: 21 ml/min
  • Accuracy: +/- 2%
  • Dosing volume: 1-999 ml
  • Minimum dosage: 1 ml
• 1/4-inch Flexible Tubing:
  • Length: 9.8 feet (300 cm)
  • Size: ID 5/32 inch (4 mm), OD 1/4 inch (6.4 mm)
• Max. Mounting Thickness: Hanging Bracket: 3/4 inch (19 mm)
• Dimensions (L x H x W): 5.6 inch x 3.2 inch x 1.4 inch (143 mm x 82 mm x 35 mm)

What's Included?

Smart Doser 2
Universal Power Adapter
Wall-Mount Bracket
Hanging Bracket
Calibration Cylinder
Tube Clip
(2x) 1/4" Quick-Connect Elbow
(2x) Mounting Screw
Blue Tubing (approx. 9.8')
Green Tubing (approx. 9.8')
