Red Sea ReefDose 4 - Dosing Pump

Red Sea ReefDose 4 - Dosing Pump

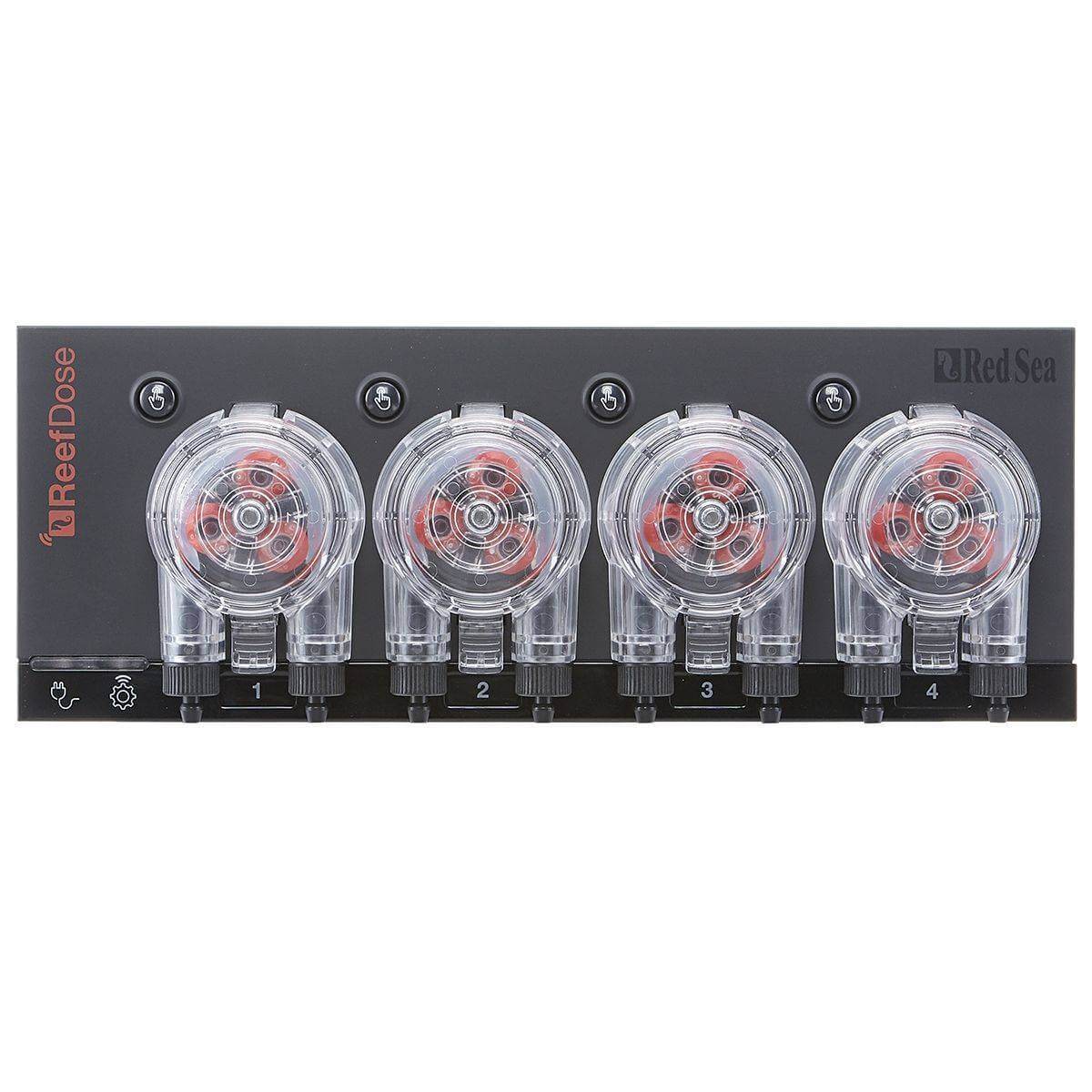

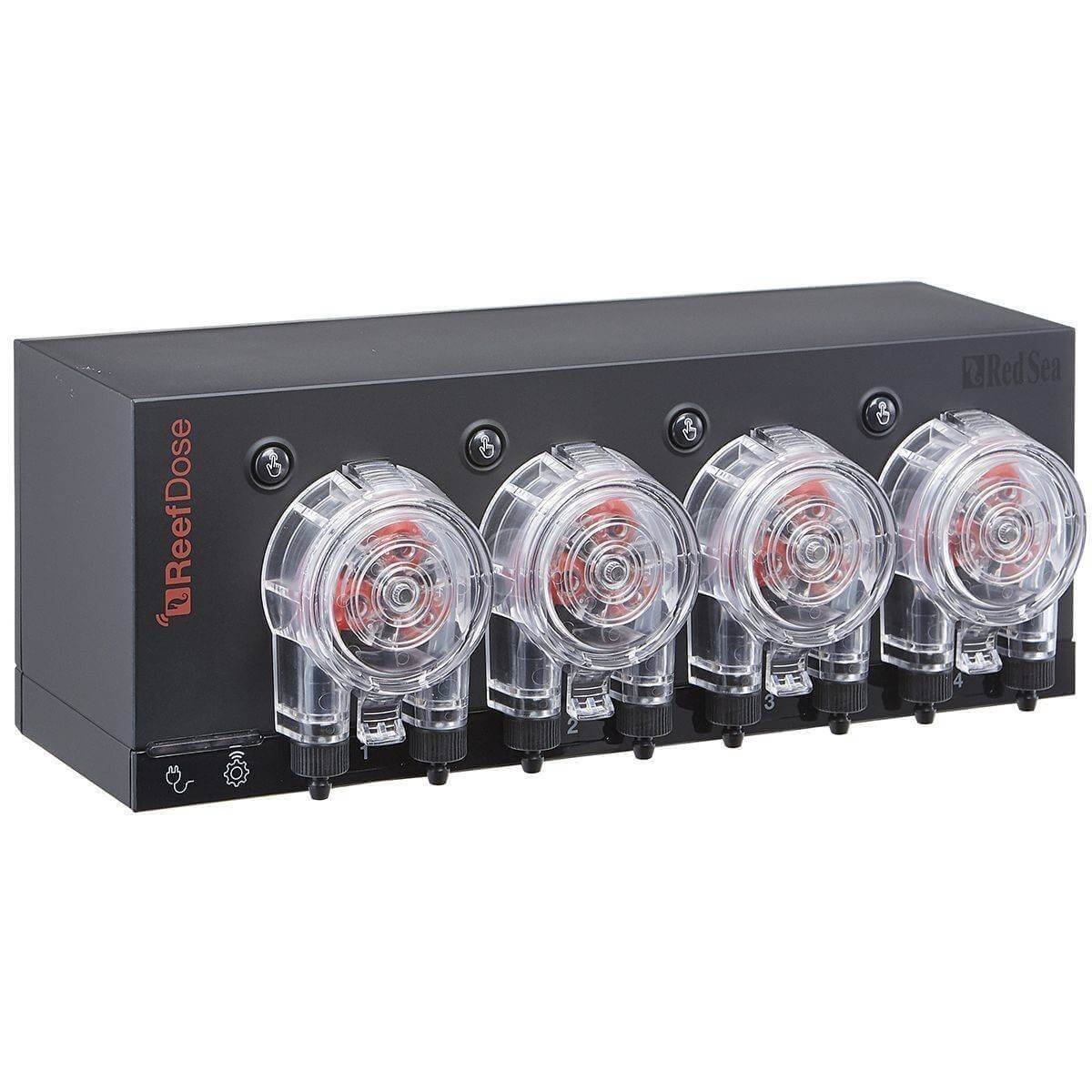

The Red Sea ReefDose 4 - Dosing Pump is a four-head automatic dosing pump for precise, scheduled dosing of aquarium supplements. It is built for modern reef aquarists who want accurate, programmable dosing for a demanding reef tank. Custom-built dosing heads deliver single-drop precision, and ReefBeat App control makes it simple to set up.

Key Benefits

• Single-drop accuracy from custom-built dosing heads with a direct-drive planetary gear-motor, giving a precision of ± 0.05 ml or an average deviation of 0.5% (over 10 ml)
• Four easy-set smart dosing options for each head, automatically combined into one coordinated schedule
• Click-on/click-off dosing heads that need no tools or alignment, so assembly is quick
• Automatic delay between the heads to prevent chemical interaction between supplements
• Automatic dose compensation for doses missed due to power loss
• Three dosing flow rates: Whisper at 15 ml/min for quiet running, Regular at 30 ml/min, and Turbo at 45 ml/min
• On-demand manual dosing when you need to dose outside the schedule
• Motor life expectancy of 10 years, based on 250 ml/day/head

Smart Dosing with the Dynamic Dosing Queue

The ReefDose is more than another programmable dosing pump. Its "Dynamic Dosing Queue" is run by the controller and combines the dosing plans for every head into one coordinated daily schedule for the whole device. The queue updates automatically after any settings change. It also reschedules doses missed due to unscheduled events such as power outages, maintenance or feeding.

ReefBeat App Control

The ReefDose is part of the Red Sea smart ecosystem and integrates with other ReefBeat devices. Through the ReefBeat App you can programme multiple automated dosing setups or build individually customised schedules for each head.

• Run dosing programmes every day or only on selected days
• Set daily doses from once per day up to once per hour
• Automatic rescheduling after changes to the dosing schedule or number of doses
• Dose Queue presents a coordinated list of doses scheduled for all heads
• Dose Log keeps a record of supplement volumes per hour for up to 30 days
• Notifications and alerts for missed doses and more
• Volume monitor keeps track of when reservoirs need to be refilled
• Set a dosing head to "Food Head" to dose liquid foods

How to Use

• Click the dosing heads onto the unit. No tools or alignment are required.
• Connect your tubing to each head (3 mm ID, 5 mm OD).
• Programme each head in the ReefBeat App with up to four dosing options. The controller merges them into a single coordinated schedule.
• Choose Whisper, Regular or Turbo flow depending on how quiet or quick you want dosing to be.
• Use on-demand manual dosing for one-off doses.

Dosage

• Daily dose per head: 0.2 ml up to 1000 ml, adjustable in increments of 0.1 ml
• Dosing frequency: 1x/day up to 24x/day
• Dosing flow rates: Whisper 15 ml/min, Regular 30 ml/min, Turbo 45 ml/min

Suitable For

• Reef aquarists who want automated, accurate supplement dosing
• Setups that dose several supplements and need staggered timing to avoid chemical interaction
• Aquarists already using ReefBeat devices who want everything in one app
• Keepers who want to dose liquid foods automatically using a Food Head

Specifications

• Dimensions: 22.6 cm (8.9") L x 10.4 cm (4.1") H
• Dosing heads: 4
• Dosing precision: ± 0.05 ml (average deviation 0.5% over 10 ml)
• Dosing range: 1x/day to 24x/day, 0.2 ml to 1000 ml per head
• Dosing speed: 15 ml/min to 45 ml/min
• Tubing connection: 3 mm ID, 5 mm OD

Frequently Asked Questions

How accurate is the ReefDose 4?
Its precision is ± 0.05 ml, or an average deviation of 0.5% over 10 ml, thanks to the direct-drive planetary gear-motor and single-drop accuracy dosing heads.

What happens to my dosing schedule if there is a power cut?
Automatic dose compensation covers doses missed due to power loss. The Dynamic Dosing Queue also reschedules missed doses after outages, maintenance or feeding.

What tubing does it use?
The tubing connection is 3 mm ID and 5 mm OD.

How fast can it dose?
There are three flow rates: Whisper at 15 ml/min, Regular at 30 ml/min and Turbo at 45 ml/min.

Can it dose more than one supplement without them interacting?
It has four dosing heads, and an automatic delay between the heads helps prevent chemical interaction between supplements. The four smart dosing options per head are combined into one coordinated schedule.

Can I dose liquid food with it?
Yes. In the ReefBeat App you can set a dosing head to "Food Head" and use it to dose liquid foods.
