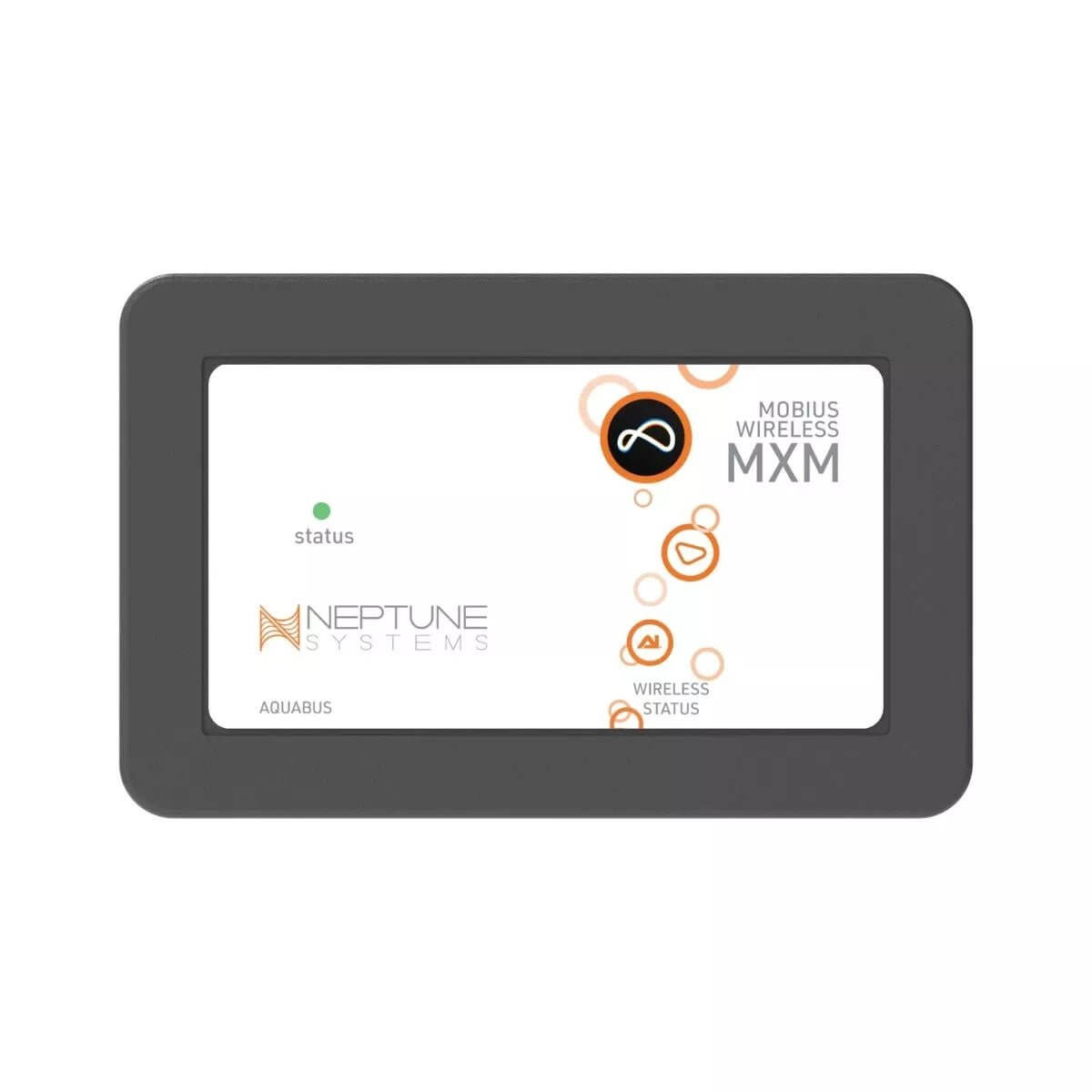

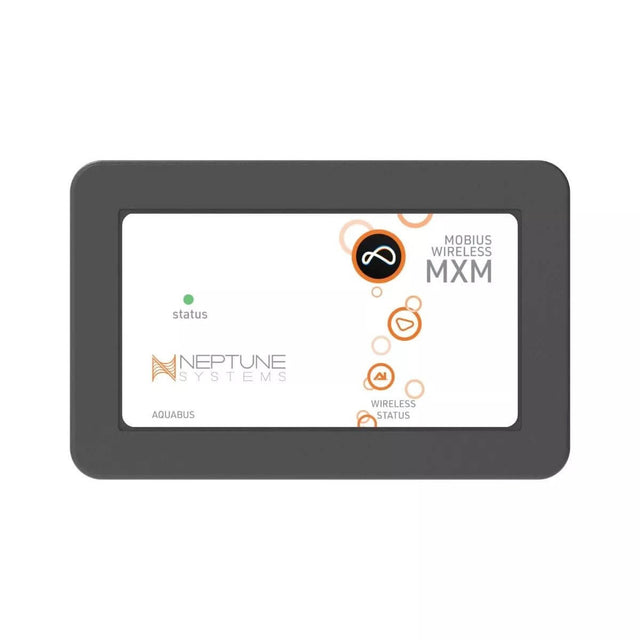

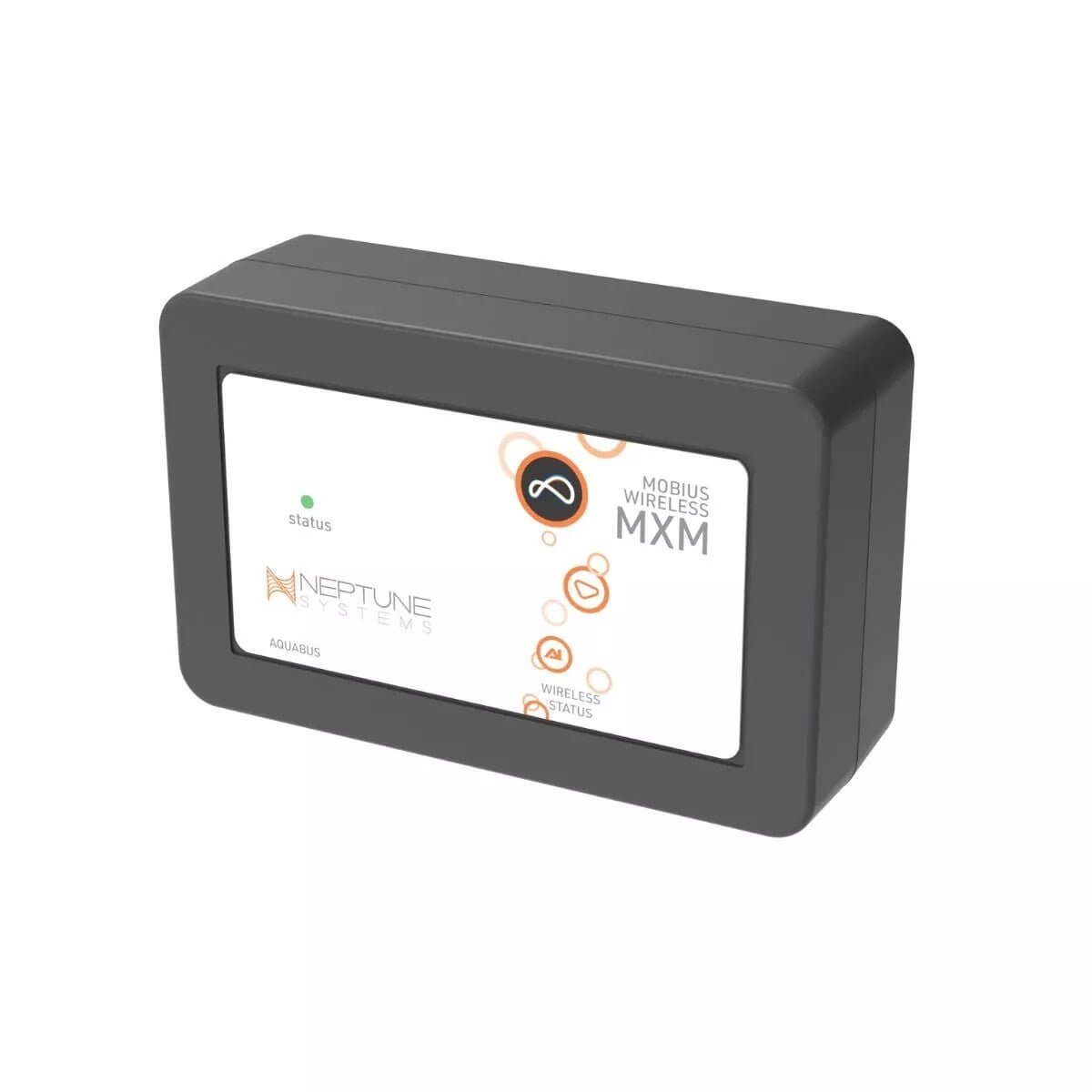

Neptune MXM Mobius Wireless Control Module

Neptune MXM Mobius Wireless Control Module

The Neptune MXM Mobius Wireless Control Module is a wireless control module that connects EcoTech Marine and AquaIllumination equipment to the Apex and Apex Fusion system. It suits aquarium keepers who want their pumps, lights and Neptune gear managed from one interface instead of several apps.

Key Benefits

• Wirelessly connect EcoTech and AquaIllumination (AI) gear through an Apex
• Control EcoTech and AI equipment from Apex Fusion
• Works with all A2 and A3 Apex systems
• Wirelessly controls up to 25 Mobius devices
• No more switching between multiple apps. Your favourite EcoTech and AI pumps and lights sit under the same Apex and Apex Fusion interface you already use
• Mix and match equipment from EcoTech, AI and Neptune Systems and run it all together. MXM is the result of Neptune Systems, EcoTech Marine and AquaIllumination working together

Why Use MXM?

Once Apex Fusion controls your EcoTech or AquaIllumination gear, that equipment can be included in your Apex feed modes and other automation. With a single button press, or at a scheduled time, your Apex can:

• Start a feeding cycle for your fish and corals
• Set your Vortech powerheads to a light pulse setting
• Activate feed intensity on your Vectra return pump
• Turn off your skimmer
• Activate your AFS

This is just one example of what the module can do.

How to Use

• Step 1: Set up your MXM, EcoTech and AI devices in Mobius
• Step 2: Release control to your Apex
• Step 3: Access Apex Fusion for expanded features and control

Suitable For

• Aquarium keepers who already run an Apex or Apex Fusion system and want to add EcoTech or AquaIllumination lights and pumps to it
• Reef keepers who want feeding cycles and scheduled automation to cover their pumps, return pump, skimmer, AFS and lighting together

Compatibility

Requires a Neptune Systems Apex A3 (Apex Pro, Apex, Apex Jr.) or Apex A2 (Apex, Apex EL). Compatible EcoTech Marine and AquaIllumination devices:

• EcoTech Marine Radion XR15 and XR30 LED lights (G5 | G6)
• EcoTech Marine Vortech MQD Series (MP10 | MP40 | MP60)
• EcoTech Marine Vectra Series 2 (S2 | M2 | L2)
• AquaIllumination Hydra Series (32 HD | 64 HD)
• AquaIllumination Prime 16HD (Reef | Freshwater | Sol | Fuge)
• AquaIllumination Nero Series (Nero 3 | Nero 5 | Nero 7)
• AquaIllumination Blade LED Strip (Grow | Glow | Freshwater | Refugium)
• AquaIllumination Orbit Series (Orbit 2 | Orbit 4)
• AquaIllumination Axis Series (Axis 20 | Axis 40 | Axis 90)

Specifications

• Connection: wireless
• Maximum devices: up to 25 Mobius devices
• Cable length: 0.9 m (3')

What's Included

• 1 x MXM module
• 1 x 0.9 m (3') AquaBus cable

Frequently Asked Questions

Which Apex controllers does the MXM module work with?
It works with all A2 and A3 Apex systems: the Apex Pro, Apex and Apex Jr. (A3), and the Apex and Apex EL (A2).

How many devices can it control?
It can wirelessly control up to 25 Mobius devices.

Can I use my Vortech and Vectra pumps in Apex feed modes?
Yes. Once connected, your Apex can set Vortech powerheads to a light pulse setting and activate feed intensity on a Vectra return pump as part of a feed mode. The same button or schedule can also turn off your skimmer and activate your AFS.

Does it support the Radion G5 and G6 lights?
Yes. The EcoTech Marine Radion XR15 and XR30 are supported in both G5 and G6 versions.

Do I still need to use separate apps for my EcoTech and AI gear?
No. After you set up your devices in Mobius and release control to your Apex, you can access them through Apex Fusion for expanded features and control.

Is the cable included?
Yes. The module comes with a 0.9 m (3') AquaBus cable.
