Radion XR30 G6 Pro LED Light Fixture

Radion XR30 G6 Pro LED Light Fixture

Radion XR30 G6 Pro LED Light Fixture is a programmable reef aquarium LED light that provides high-quality lighting for aquaculture systems and home aquariums, particularly to support coral growth and colouration. The latest Radion generation brings a new LED cluster, the Hybrid Hemispherically Edge Illuminating (HEI2) optical system and diodes that reach deeper into the UV spectrum. It suits reef keepers who want a wide, even spread of light and full wireless control from a smartphone or tablet.

Many of the corals reef keepers know and love have been grown, or "coloured up", under earlier generations of Radion. Each generation has built on the results of the last, combining proven performance with greater ease of use. EcoTech Marine has also put significant time into developing and testing lighting programs, such as the popular SPS AB+, to bring out the best in corals.

Key Benefits

• New HEI2 optical system with redesigned LED placement, for shimmer, superior colour mixing, even PAR, a wide spread and adjustable hues.
• Super-wide 126.3 degree spread, up from the 110.5 degrees of the previous optics.
• 395nm diodes for ultimate fluorescence.
• Rebalanced colour channels and LED mix.
• Even PAR and high output across almost 1.2 m (4 ft) of coverage area.
• Moonlight and weather simulation.
• Proven CoralLab AB+ spectrum.
• Fully programmable wireless control through the Mobius app, with no separate controller to buy.

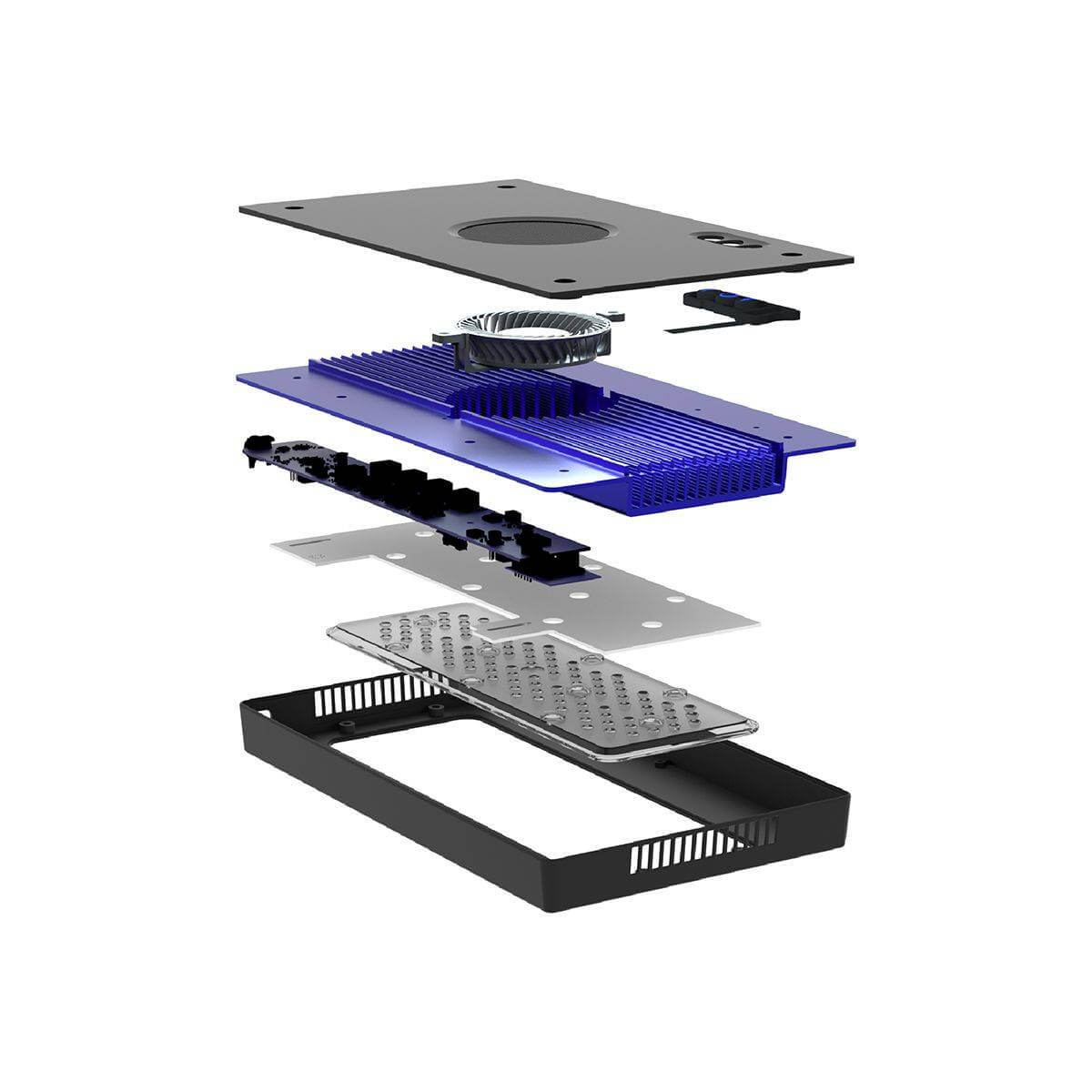

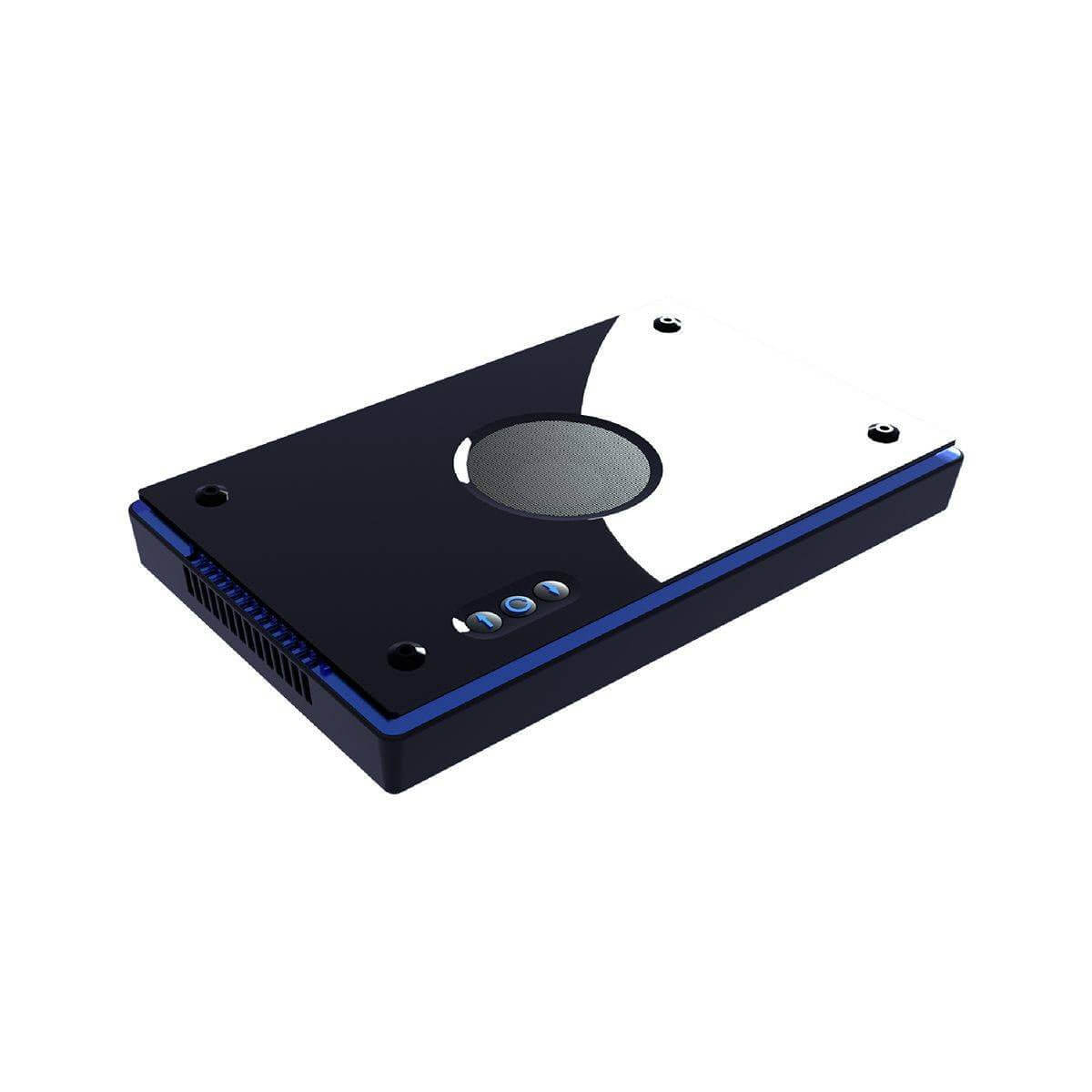

• Compact, sleek design with a small footprint and a quiet fan with a revolutionary heatsink.

Wide Spread and Even Coverage

The G6 reaches its 126.3 degree spread through a change to the primary lens on the LEDs. This works with the geometry of the existing HEI secondary lens to lift the spread from 110.5 to 126.3 degrees. The wider spread also bounces light off the aquarium's side glass and back into the tank. This reduces shadows and puts light on the undersides of corals, so you may be able to light a tank with fewer fixtures. The G6 has the highest average output of all Radions and delivers even PAR across almost four feet of coverage, which makes it perhaps the most efficient aquarium light made to date.

Blue vs. Pro

• G6 Blue: The blue has become even bluer. Adjustments to the diode mix and the addition of 395nm give deeper colour intensity and increased fluorescence. You can tune the blue between actinic and crisp to suit the look of your tank.
• G6 Pro: This is the version seen as the lighting of choice in many public aquariums, aquaculture facilities and coral spawning laboratories worldwide. It has a balanced LED mix with proven spectrums similar to the output of Metal Halide lighting.

How to Use

• Mount the fixture at the recommended height of 20–25 cm (8–10") using the supplied eyelet mounts, or the mounting options available for the previous Radion generation.
• Download the Mobius app free from the App Store or Google Play.
• Connect to the light wirelessly from a current-OS iOS or Android smart device. Setup and programming are almost instant, and control is local and wireless.
• Use the app's visual interface to program the colour channels, moonlight and weather simulation, or the CoralLab AB+ spectrum.

Mobius Control

More colours mean more channels, and Mobius makes programming the G6 quicker and easier. The same platform lets you connect, control and program your whole collection of EcoTech equipment from one iOS or Android device. That covers pumps, lights, dosing and flow, without buying expensive modules and controllers. The interface is intuitive and simplified.

Suitable For

• Home reef aquariums and coral tanks.
• Aquaculture and coral propagation systems.
• Reef keepers who want to enhance coral growth and colouration with a programmable fixture.

Compatibility

• Backwards compatible with the extensive mounting options and accessories available for the previous generation of Radion.
• Controlled through Mobius on current-OS iOS and Android smart devices.
• Works with the wider range of EcoTech equipment on the Mobius platform.

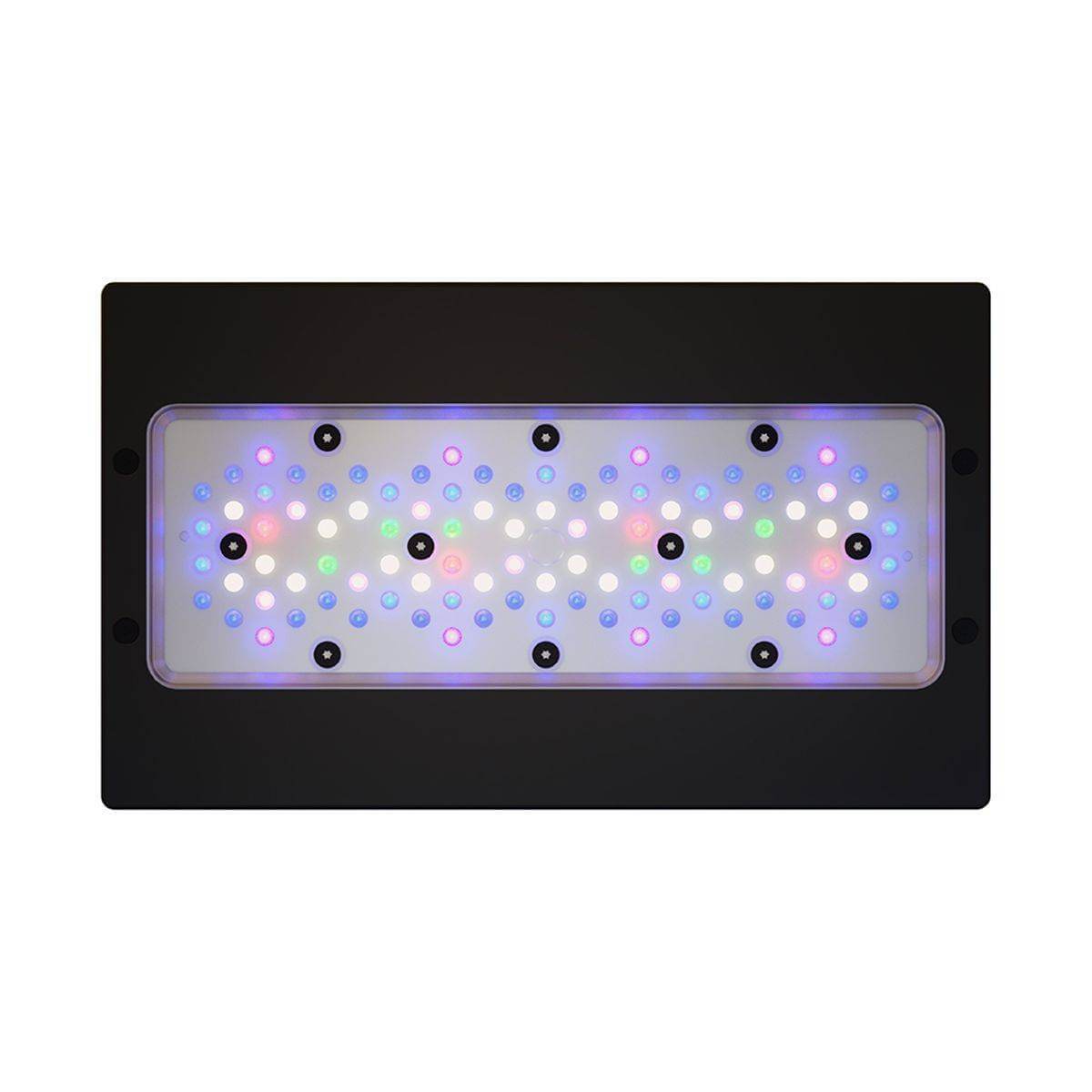

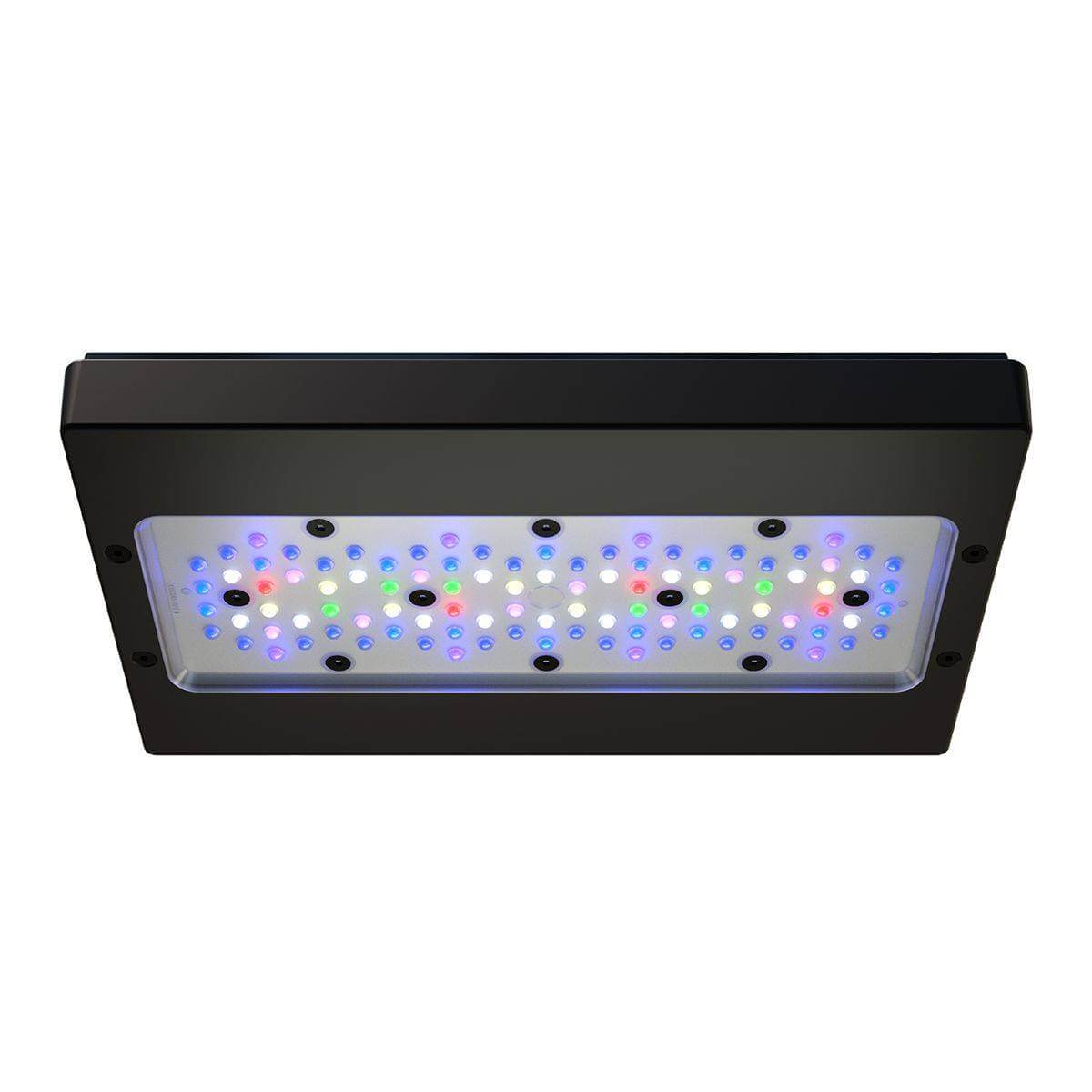

LED Details

• 16x Cool White
• 32x Royal Blue
• 16x Blue
• 4x Red
• 6x Green
• 4x UV (395nm)
• 2x UV (405nm)
• 4x UV (415nm)
• 8x Violet (430nm)
• 8x Warm White

Specifications

• Dimensions: 30 cm L x 17.8 cm W x 3.8 cm H (11.8" x 7" x 1.5")
• Weight: 2 kg (4.5 lb)
• Cable length: 4 m (13 ft)
• Power input: 100–240VAC, 4.0A, 50/60Hz
• Variable usage (max): 215W
• Recommended mounting height: 20–25 cm (8–10")

What's Included

• XR30 G6 Pro Radion LED fixture
• Power supply
• Power adapter cable
• Microfibre cloth
• Eyelet mounts
• Quick start guide

Frequently Asked Questions

Do I need to buy a separate controller for the Radion XR30 G6 Pro?
No. Control and programming are done wirelessly through the free Mobius app on a current-OS iOS or Android smart device.

What is the difference between the G6 Blue and the G6 Pro?
The G6 Blue has a bluer diode mix with 395nm diodes and lets you tune the blue between actinic and crisp. The G6 Pro has a balanced LED mix with proven spectrums similar to Metal Halide output.

How much of the tank will one fixture cover?
The G6 provides even PAR across almost 1.2 m (4 ft) of coverage area, with a 126.3 degree spread. Light reflecting off the side glass also helps reduce shadows.

How high should I mount it above the water?
The recommended mounting height is 20–25 cm (8–10"). Eyelet mounts are included, and the fixture is backwards compatible with the mounting options for the previous Radion generation.

How much power does it use?
Maximum variable usage is 215W. The power input range is 100–240VAC, 4.0A, 50/60Hz.

Can I run it alongside other EcoTech equipment?
Yes. Mobius lets you connect, control and program your EcoTech lights, pumps, dosing and flow equipment from one app.
