I've been testing the all-new AI Hydra Edge lights for over a month now, and I’m excited to share my detailed thoughts and experience with these innovative fixtures. The Hydra Edge is Aqua Illumination’s latest offering, designed to replace the popular 32 and 64 models, but with a surprising twist — they come in at a lower price point than their predecessors, which is quite rare in today's market.
Whether you’re a reef enthusiast looking to upgrade your lighting or just curious about what the AI Hydra Edge brings to the table, this review covers everything from build quality and mounting to light output and unique features like the solar edge technology and hyperdrive. Let’s dive in.
Table of Contents
- Design and Build Quality
- Lighting Technology and Features
- Performance and PAR Output
- Visual Impact on Corals
- Final Thoughts
- Frequently Asked Questions (FAQ)
Design and Build Quality

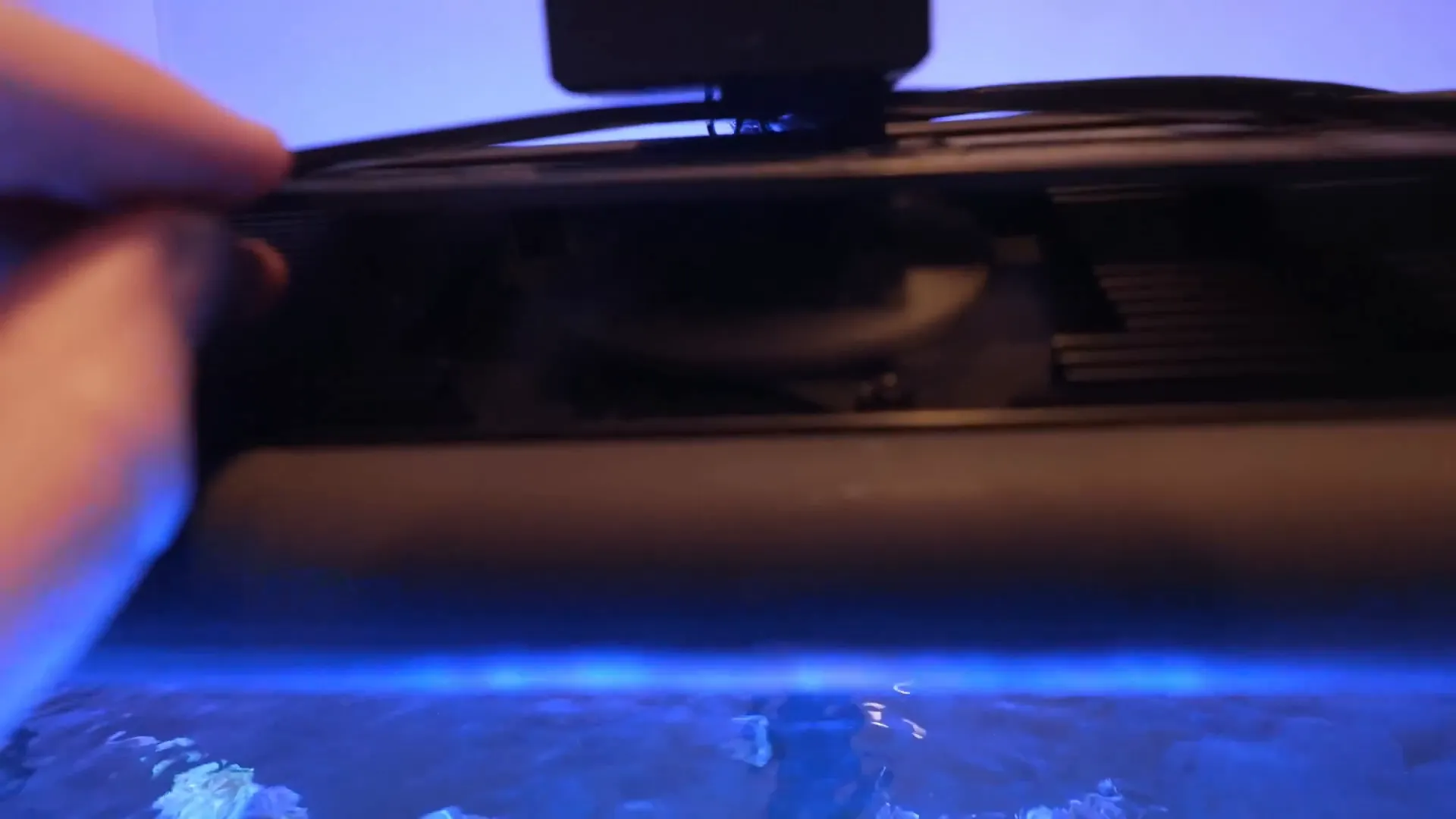

The AI Hydra Edge is like having three Blade lights mashed into one sleek panel. The fixture features a large aluminium panel with active cooling and a fan grill that’s incredibly easy to pop off for maintenance. I appreciate how simple it is to clean the fans, which encourages more regular upkeep — a big win for keeping your system running smoothly.

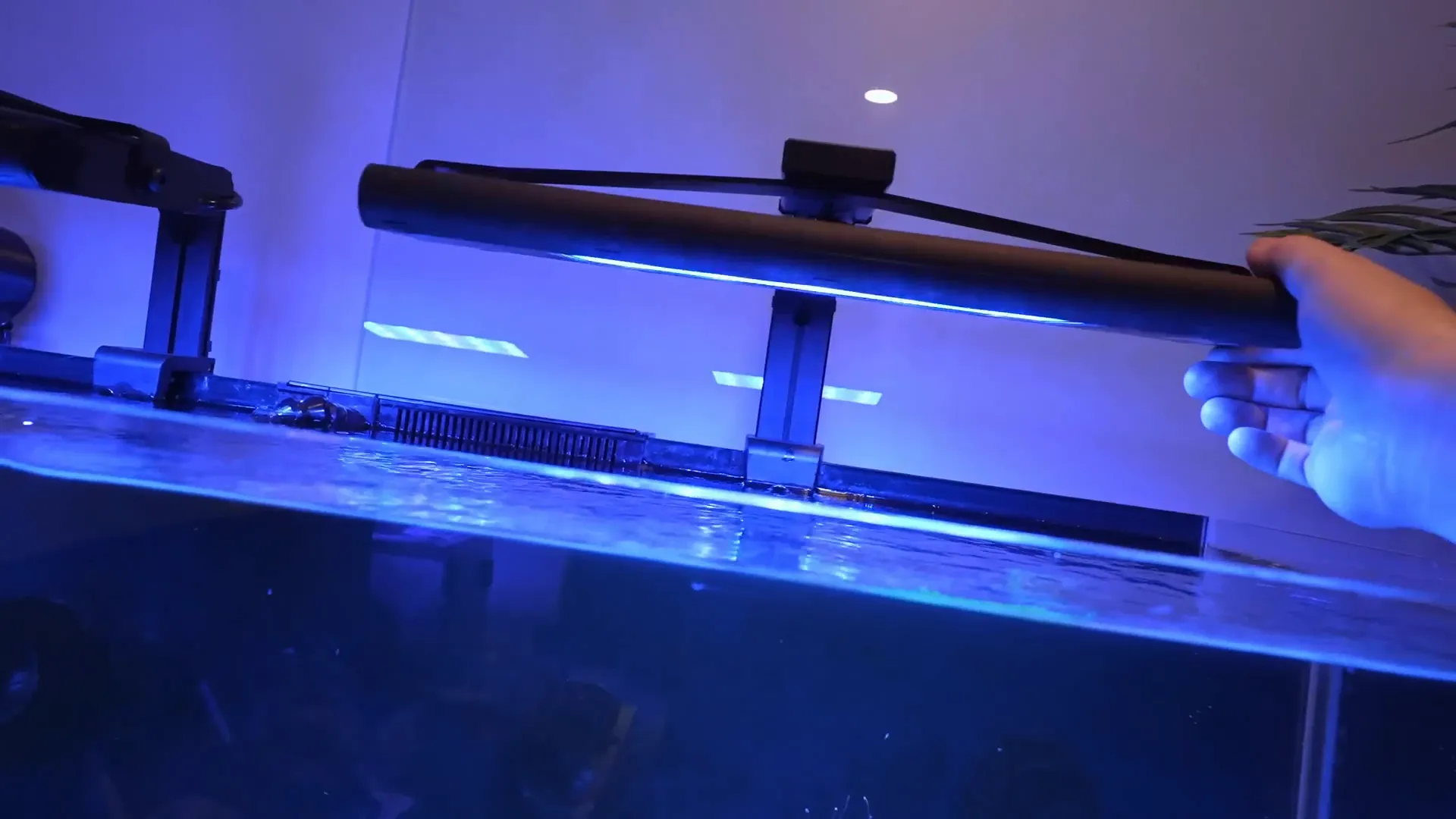

Build quality has been excellent in my experience over the past month. The materials feel solid, and the entire unit has a minimalistic aesthetic that doesn’t overpower the tank visually. The mounting system is one of my favourite features. The tilt mechanism is "glorious" — it allows me to angle the light away so I don’t see the LED sources directly from my desk, reducing eye strain and glare.
There are two mounting options: the standard bracket I’m using and a larger bracket that mounts along the back of the lights. While I haven’t used the larger bracket yet, it offers flexibility to position the lights further back or float them forward, depending on your setup preferences.
Lighting Technology and Features

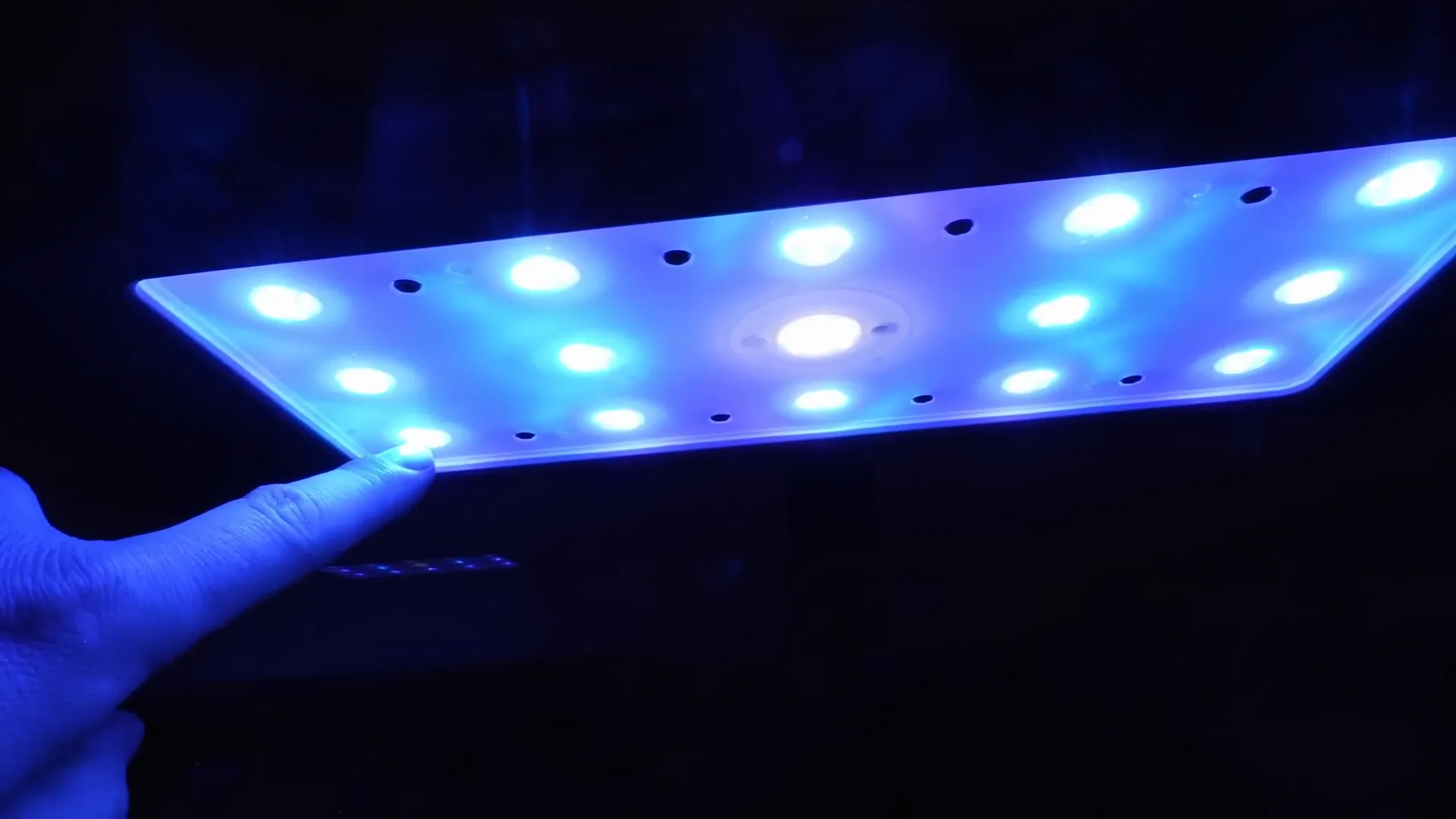

The Hydra Edge integrates AI’s edge field technology, which places LEDs in the middle and uses spill light to illuminate the entire panel uniformly. This design creates more fill light across the tank and mimics the look and feel of the Blade series but in a larger format.
One standout innovation is the “solar edge” — a clear spot in the middle of the panel that adds caustics, or shimmering light patterns, to your aquarium. This feature lets you dial in the amount of shimmer and drama in your tank by adjusting the white LED channel in your lighting schedule.
For example, increasing the white channel intensity ramps up caustics and shimmer, while lowering it reduces the effect. This level of control lets you customise the visual vibe of your tank to your liking.
Adjusting your light intensity and colour balance is straightforward: set your desired white and blue blend, then tweak the overall schedule intensity to hit your target PAR (photosynthetically active radiation) levels.
Performance and PAR Output
On my Goniopora tank, I aim for around 150 to 200 PAR, and the Hydra Edge hits this target quietly and efficiently. At my typical schedule setting, the fans are ultra-quiet — I can barely hear them running, which is a huge plus for me since I’m sensitive to noise.
Here’s a snapshot of my current channel usage:
- UV: 74%
- Violet: 67%
- Royal Blue: 122%
- Blue: 149%
- Moonlight: 0%
- White: 60%
Thanks to the hyperdrive feature, I can push channels beyond 100% by borrowing power from less-used channels. This flexibility lets me crank the lights up to 150% without issue, which is handy when you need extra intensity.
Measuring PAR at various points on my tank, I’m getting:
- At the water surface: ~1000 PAR
- Top torch coral: ~205 PAR
- Lowest torch coral: ~160 PAR
- Sand bed: ~140 PAR
If I push the lights to 100% on all channels, PAR values nearly double, reaching around 480-500 PAR on the top torch and 330-350 PAR near the sand bed. At full power, the light resembles a 14k halide look — crisp, bright, and with excellent colour rendition.
Of course, at full blast, the fans become audible, but at my usual settings (around 55%), fan noise is minimal and hardly noticeable.
Visual Impact on Corals

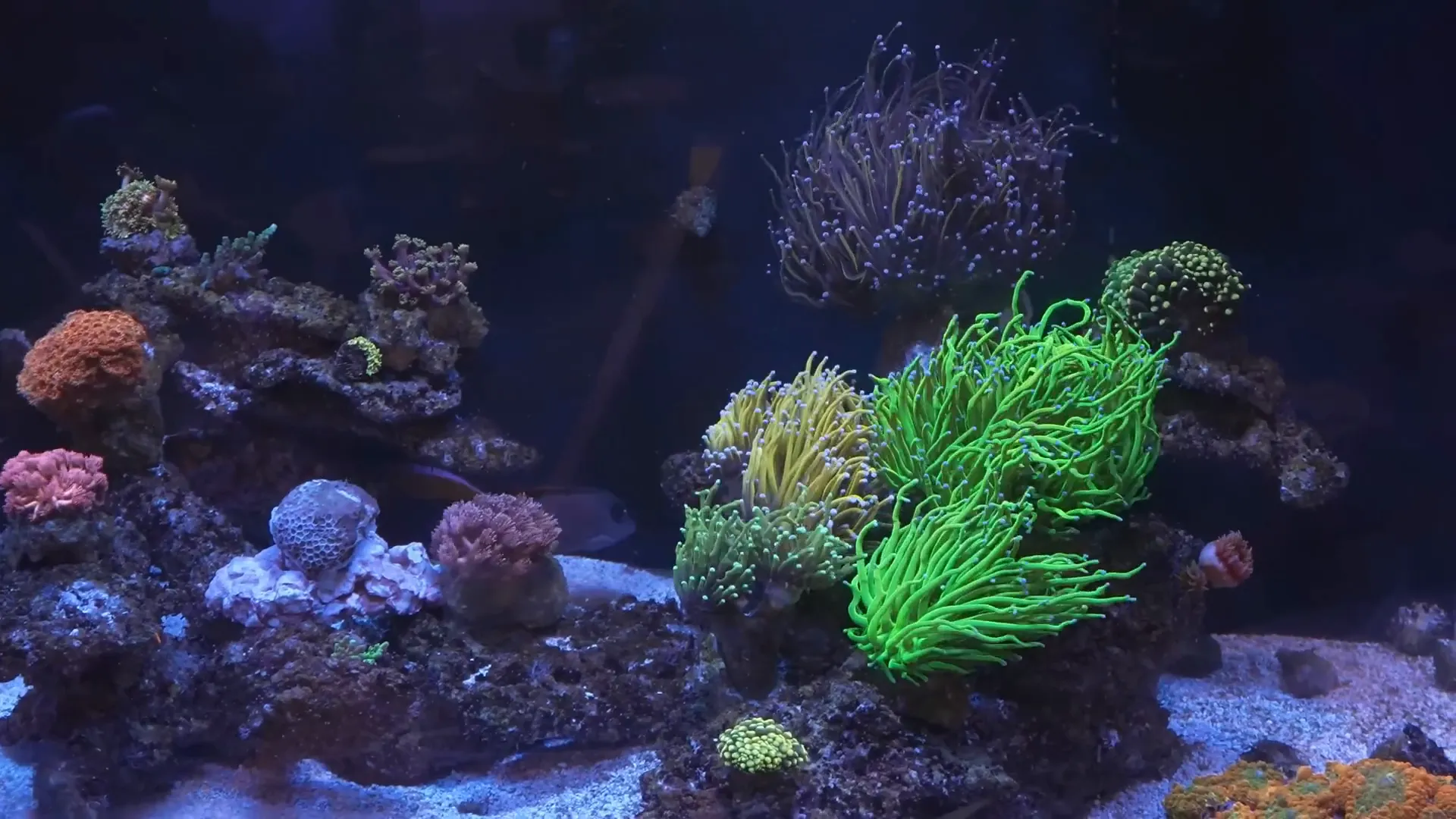

The combination of UV and blue LEDs produces fantastic colour pop and vibrance in my corals, especially my Goniopora. The tank exhibits a beautiful glow, and the lighting balance enhances the overall aesthetics dramatically.
Thanks to the solar edge and adjustable white channel, I can tweak the shimmer effect to add more dynamic lighting and mimic natural sunlight patterns, which really brings the tank to life.
Final Thoughts
After a month of beta testing and schedule fine-tuning, the AI Hydra Edge has become my go-to lighting solution for my Goniopora tank. Its quiet operation, ease of maintenance, flexible mounting, and powerful light output make it a standout product in the reef lighting space.
Lower price than previous generation models is a welcome surprise, especially given the advanced features and excellent build quality. The minimalistic design also helps keep the focus on the tank, not the hardware.
If you’re considering a new lighting setup or an upgrade, the Hydra Edge is definitely worth a close look.
Frequently Asked Questions (FAQ)
What makes the AI Hydra Edge different from previous AI lights?
The Hydra Edge combines three Blade fixtures into one panel, offers edge field technology for uniform light distribution, and introduces the solar edge feature for enhanced caustics. It also comes at a lower price point than the 32 and 64 models it replaces.
How quiet are the fans on the Hydra Edge?
At typical schedule settings (around 55% intensity), the fans are ultra-quiet and barely noticeable. Fans become audible only when running at 100% intensity.
Can I adjust the shimmer or caustics effect?
Yes, the amount of shimmer is controlled by the white LED channel in your lighting schedule. Increasing the white channel increases caustics and shimmer, while decreasing it reduces the effect.
What is the hyperdrive feature?
Hyperdrive allows you to push one LED channel beyond 100% by borrowing power from less-used channels, giving you extra light intensity when needed.
Are there different size options for the Hydra Edge?
Yes, AI offers smaller and larger models. I opted for the larger model to get a broader light spread and more coverage.
How easy is it to maintain the Hydra Edge?
The fan grill is easy to remove, making it simple to clean the fans regularly. The aluminium panel also helps with heat dissipation and durability.
